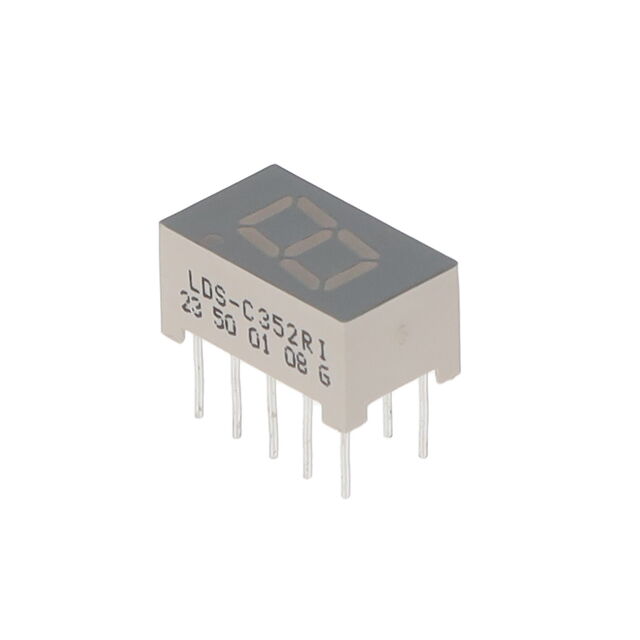

LDS-C352RI
ActiveLumex Opto/Components Inc.
DISPLAY 7SEG 0.3" SGL GRN 10DIP
Deep-Dive with AI
Search across all available documentation for this part.
LDS-C352RI
ActiveLumex Opto/Components Inc.
DISPLAY 7SEG 0.3" SGL GRN 10DIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LDS-C352RI |
|---|---|
| Color | Green |
| Common Pin | Common Cathode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 0.3 in |
| Digit/Alpha Size | 7.62 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 2.5 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 10-DIP |
| Package / Case | 0.2 in |
| Package / Case | 0.2 in |
| Power Dissipation (Max) [Max] | 105 mW |
| Size / Dimension [x] | 0.5 in |
| Size / Dimension [x] | 12.7 mm |
| Size / Dimension [y] | 0.299 in |
| Size / Dimension [y] | 7.6 mm |
| Size / Dimension [z] | 0.24 " |
| Size / Dimension [z] | 6.1 mm |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength - Peak | 565 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.97 | |
| 40 | $ 1.31 | |||
| 120 | $ 1.01 | |||
| 1000 | $ 0.78 | |||
| 5000 | $ 0.72 | |||
| 10000 | $ 0.71 | |||
Description
General part information
LDS-C352 Series
Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Cathode 2.2V 10mA 0.500" H x 0.299" W x 0.240" D (12.70mm x 7.60mm x 6.10mm) 10-DIP (0.200", 5.08mm)
