90141-AS

Active

PRECI-DIP SA

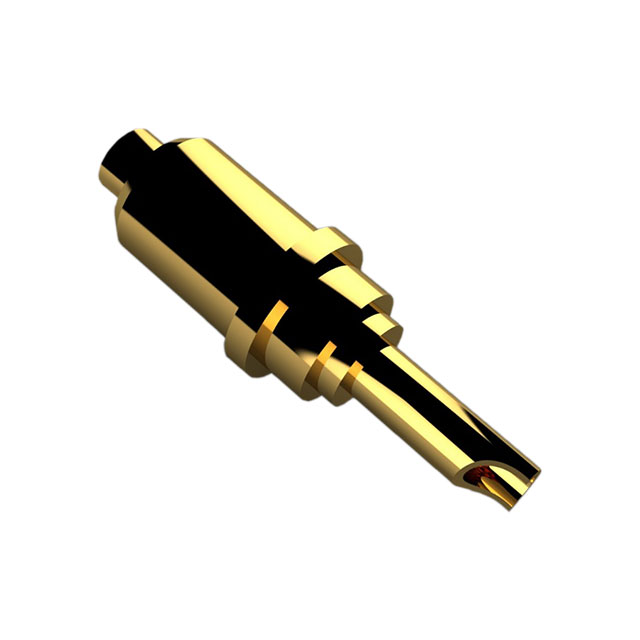

CONTACT SPRING LOADED SLDR CUP

Search across all available documentation for this part.

Active

PRECI-DIP SA

CONTACT SPRING LOADED SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	90141-AS

Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Brass Alloy
Contact Type	Sleeve & Plunger (Pogo Pins)
Current Rating (Amps)	3 A
Mating Cycles	40000
Maximum Working Height [Max]	11.73 mm
Maximum Working Height [Max]	0.462 in
Minimum Working Height [Min]	0.397 in
Minimum Working Height [Min]	10.08 mm
Mounting Type	Solder Cup, Through Hole
Operating Force - Initial	458.87 gf
Operating Force - Mid Compression	662.82 gf
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pad Layout Dimension [diameter]	0.135 in
Pad Layout Dimension [diameter]	3.44 mm
Plunger Size [diameter]	0.117 in
Plunger Size [diameter]	2.97 mm

Part	Pad Layout Dimension [diameter]	Pad Layout Dimension [diameter]	Mating Cycles	Minimum Working Height [Min]	Minimum Working Height [Min]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Finish	Operating Force - Initial	Contact Material	Current Rating (Amps)	Maximum Working Height [Max]	Maximum Working Height [Max]	Plunger Size [diameter]	Plunger Size [diameter]	Operating Force - Mid Compression	Contact Finish Thickness	Contact Finish Thickness
PRECI-DIP SA 90141-AS	0.135 in	3.44 mm	40000	0.397 in	10.08 mm	Solder Cup Through Hole	-55 °C	125 °C	Sleeve & Plunger (Pogo Pins)	Gold	458.87 gf	Brass Alloy	3 A	11.73 mm	0.462 in	0.117 in	2.97 mm	662.82 gf	10 Áin	0.25 Ám
