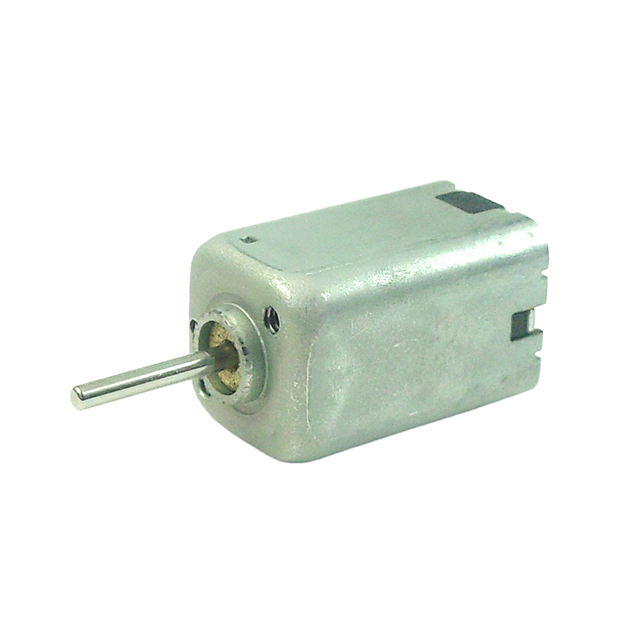

SE8FONTM
ObsoleteNMB TECHNOLOGIES
STANDARD MOTOR 11056 RPM 4VDC
Deep-Dive with AI
Search across all available documentation for this part.
SE8FONTM
ObsoleteNMB TECHNOLOGIES
STANDARD MOTOR 11056 RPM 4VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SE8FONTM |
|---|---|
| Diameter - Shaft [diameter] | 0.039 in |
| Diameter - Shaft [diameter] | 1 mm |
| Function | Standard |
| Length - Shaft and Bearing | 7.3 mm |
| Length - Shaft and Bearing [x] | 0.287 in |
| Motor Type | Brushed |
| Mounting Hole Spacing | 6.4 mm |
| Mounting Hole Spacing | 0.252 in |
| RPM | 11056 RPM |
| Size / Dimension [x] | 0.315 in |
| Size / Dimension [x] | 8 mm |
| Size / Dimension [y] | 8 mm |
| Size / Dimension [y] | 0.315 in |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 0.028 oz-in |
| Torque - Rated (oz-in / mNm) | 0.2 mNm |
| Type | DC Motor |
| Voltage - Rated | 4 V |
| Weight | 0.008 lb |
| Weight | 3.63 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SE8FON Series
Brushed DC Motor Standard 11056 RPM 4VDC
