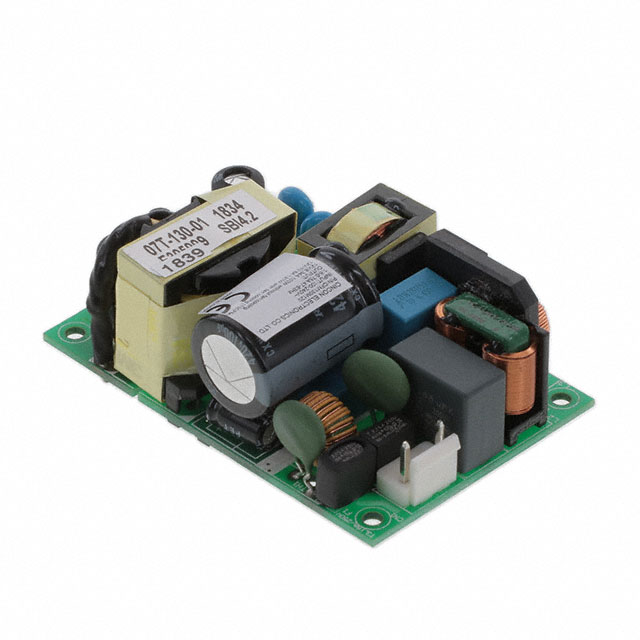

CFM130M120

Active

Cincon Electronics Co. LTD

AC/DC CONVERTER 12V 100W

Search across all available documentation for this part.

Active

Cincon Electronics Co. LTD

AC/DC CONVERTER 12V 100W

Technical Specifications

Parameters and characteristics for this part

Specification	CFM130M120

Applications	Household Appliances, Medical
Approval Agency	CE, cURus, FCC, TUV
Current - Output 1	8.34 A
Efficiency	93 %
Features	PFC, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	130 W
Power (Watts)	100 W
Size / Dimension [x]	3 "
Size / Dimension [x]	76.2 mm
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	1.2 "
Size / Dimension [z]	30.5 mm
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	80 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	12 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Type	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Power (Watts)	Power (Watts)	Voltage - Isolation	Mounting Type	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output 1	Efficiency	Approval Agency	Standard Number
Cincon Electronics Co. LTD CFM130M120-C	70 °C	-30 °C	1	Enclosed	PFC Universal Input	64 mm	91.4 mm	34.5 mm	1.36 "	2.52 "	3.6 in	12 V	130 W	100 W	4000 V	Chassis Mount	Household Appliances Medical	264 VAC	80 VAC	8.34 A	93 %	CE cURus FCC TUV
Cincon Electronics Co. LTD CFM130M360-C	70 °C	-30 °C	1	Enclosed	PFC Universal Input	64 mm	91.4 mm	34.5 mm	1.36 "	2.52 "	3.6 in	36 V	130 W	101 W	4000 V	Chassis Mount	Household Appliances Medical	264 VAC	80 VAC	2.8 A	94 %	CE cURus FCC TUV
Cincon Electronics Co. LTD CFM130S240-B	70 °C	-30 °C	1	Open Frame	PFC Standby Output Universal Input	50.8 mm	91.4 mm	33 mm	1.3 "	2 in	3.6 in	24 V	130 W	101 W	4000 V	Chassis Mount	Household Appliances ITE (Commercial)	240 VAC	100 VAC	4.2 A	93 %	CE cURus DEMKO FCC	60335-1 60601-1 62368-1
Cincon Electronics Co. LTD CFM130M120	70 °C	-30 °C	1	Open Frame	PFC Universal Input	50.8 mm	76.2 mm	30.5 mm	1.2 "	2 in	3 "	12 V	130 W	100 W	4000 V	Chassis Mount	Household Appliances Medical	264 VAC	80 VAC	8.34 A	93 %	CE cURus FCC TUV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 12V 80 ~ 264 VAC Input
