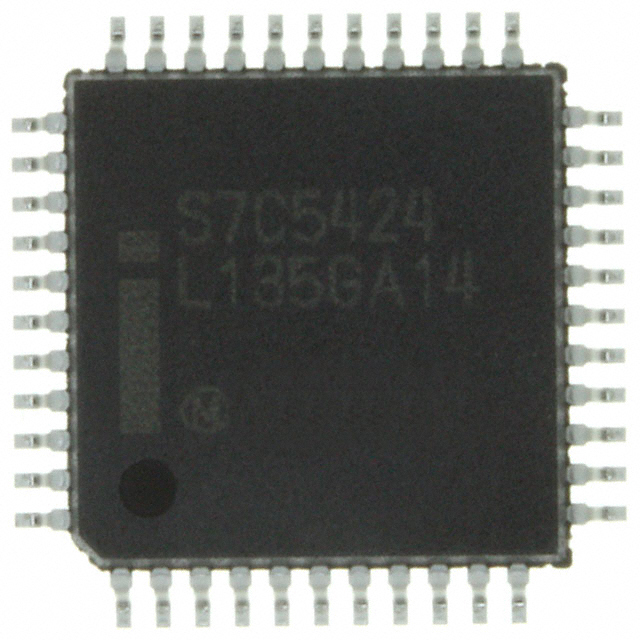

S87C5424SF76
ObsoleteAltera
IC MCU 8BIT 16KB OTP 44QFP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S87C5424SF76
ObsoleteAltera
IC MCU 8BIT 16KB OTP 44QFP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S87C5424SF76 |
|---|---|
| Connectivity | SIO |
| Core Processor | MCS 51 |
| Core Size | 8-Bit |
| Mounting Type | Surface Mount |
| Number of I/O | 32 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Oscillator Type | External |
| Package / Case | 44-QFP |
| Program Memory Size | 16 KB |
| Program Memory Type | OTP |
| RAM Size | 256 x 8 |
| Speed | 24 MHz |
| Voltage - Supply (Vcc/Vdd) [Max] | 6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.76 | |
Description
General part information
S87C5424 Series
MCS 51 87C Microcontroller IC 8-Bit 24MHz 16KB (16K x 8) OTP
Documents
Technical documentation and resources
