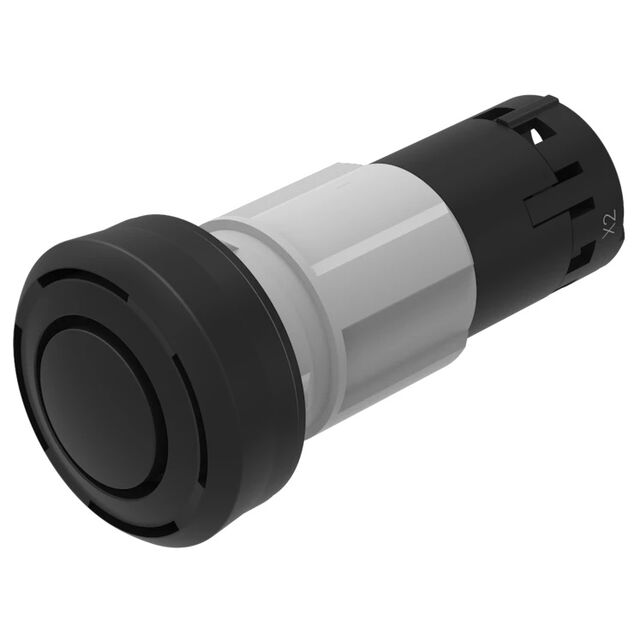

45-2H00.1016.000

Active

EAO

BUZZER 24V 29.5MM SMD

Search across all available documentation for this part.

Active

EAO

BUZZER 24V 29.5MM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	45-2H00.1016.000

Driver Circuitry	Internally Driven, Indicator
Height - Seated (Max) [Max] [z]	62.5 mm
Height - Seated (Max) [Max] [z]	2.461 in
Ingress Protection	IP40
Mounting Type	Surface Mount
Port Location	Top
Size / Dimension [diameter]	29.5 mm
Size / Dimension [diameter]	1.161 in
Termination	Solder Tabs

Part	Ingress Protection	Driver Circuitry	Port Location	Input Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Termination	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type
EAO 45-2H00.2018.000	IP40	Indicator Internally Driven	Top	AC	62.5 mm	2.461 in	Solder Tabs	29.5 mm	1.161 in	Surface Mount
EAO 45-2H00.1016.000	IP40	Indicator Internally Driven	Top		62.5 mm	2.461 in	Solder Tabs	29.5 mm	1.161 in	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers Indicator, Internally Driven Surface Mount Solder Tabs
