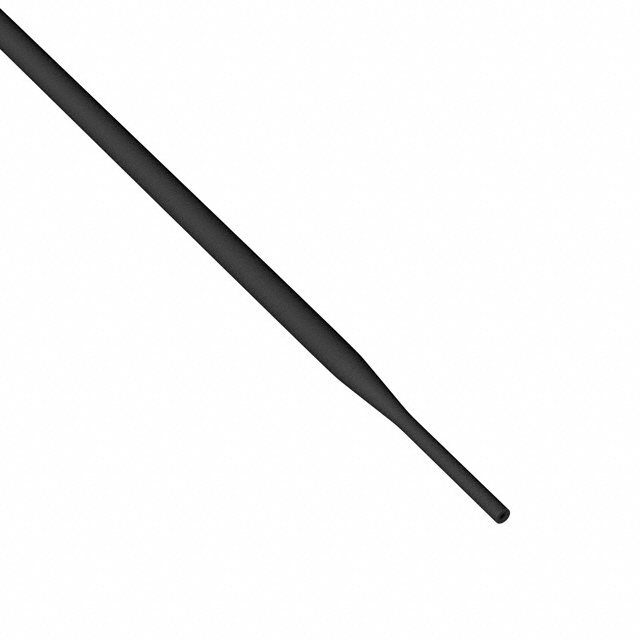

Q5-3X-3/16-01-SS100M
ActiveQualtek
HEATSHRINK 3/16" X 328.1' BLACK
Deep-Dive with AI
Search across all available documentation for this part.
Q5-3X-3/16-01-SS100M
ActiveQualtek
HEATSHRINK 3/16" X 328.1' BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q5-3X-3/16-01-SS100M |
|---|---|
| Color | Black |
| Features | Adhesive Lined, Flame Retardant |
| Inner Diameter - Recovered [diameter] | 1.52 mm |
| Inner Diameter - Recovered [diameter] | 0.06 in |
| Inner Diameter - Supplied [diameter] | 4.75 mm |
| Inner Diameter - Supplied [diameter] | 0.187 in |
| Length | 100 m |
| Length | 328.1 ft |
| Material | Polyolefin (PO) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Recovered Wall Thickness | 0.99 mm |
| Recovered Wall Thickness | 0.039 in |
| Shelf Life | 60 Months |
| Shrink Temperature | 80 °C |
| Shrinkage Ratio [Max] | 3 |
| Shrinkage Ratio [Min] | 1 |
| Storage/Refrigeration Temperature [Max] | 40 °C |
| Storage/Refrigeration Temperature [Min] | -10 °C, -50 °F |
| Type | Tubing, Flexible |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 99.49 | |
| 2 | $ 91.50 | |||
| 3 | $ 87.12 | |||
| 5 | $ 81.91 | |||
| 7 | $ 78.65 | |||
| 10 | $ 75.33 | |||
| 25 | $ 67.81 | |||
Description
General part information
Q5-3X-3/16 Series
Heat Shrink Tubing, Flexible 0.187" (4.75mm) 3 to 1 Black 328.1' (100.0m)
