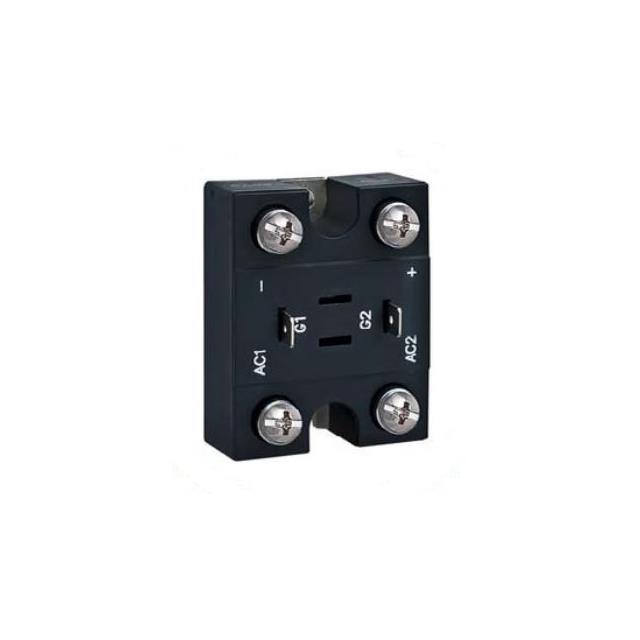

M505035V

Obsolete

Sensata-Crydom

MODULE POWER 50A 1200V SCR BRDG

Search across all available documentation for this part.

Obsolete

Sensata-Crydom

MODULE POWER 50A 1200V SCR BRDG

Technical Specifications

Parameters and characteristics for this part

Specification	M505035V

Current - Gate Trigger (Igt) (Max) [Max]	150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	600 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	4 SCRs
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Structure	All SCRs, Bridge, Single Phase
Voltage - Off State	1.2 kV

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Off State	Current - Gate Trigger (Igt) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Structure	Mounting Type	Number of SCRs, Diodes	Package / Case
Sensata-Crydom M505035V	-40 °C	125 ¯C	1.2 kV	150 mA	600 A	All SCRs Bridge Single Phase	Chassis Mount	4 SCRs	Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SCR Module 1.2 kV Bridge, Single Phase - All SCRs Chassis Mount Module
