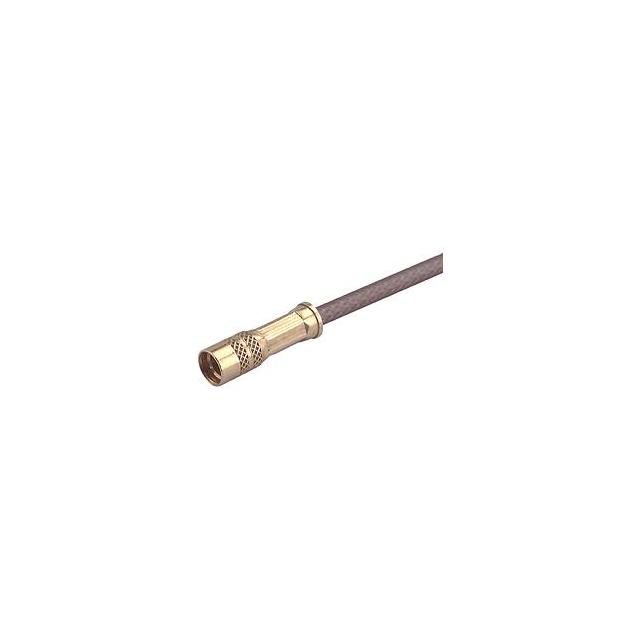

21_MMCX-50-1-1/111_OH

Active

Huber+Suhner, Inc.

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

21_MMCX-50-1-1/111_OH

Technical Specifications

Parameters and characteristics for this part

Specification	21_MMCX-50-1-1/111_OH

Body Finish	Gold
Body Material	Brass
Cable Group	196
Cable Group	RG-178
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	170 V

Part	Fastening Type	Mounting Type	Housing Color	Center Contact Plating	Body Material	Frequency - Max [Max]	Cable Group	Cable Group	Body Finish	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Impedance	Connector Type	Mating Cycles	Voltage Rating	Dielectric Material	Contact Termination	Shield Termination	Number of Ports
Huber+Suhner, Inc. 21_MMCX-50-1-1/111_OH	Snap-On	Free Hanging (In-Line)	Gold	Gold	Brass	6000 MHz	196	RG-178	Gold	MMCX	155 °C	-55 °C	Beryllium Copper	50 Ohms	Female Socket Jack	500	170 V	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Crimp	Crimp	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.02

General part information

MMCX Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
