109E2024AS001

Active

Sanyo Denki America Inc.

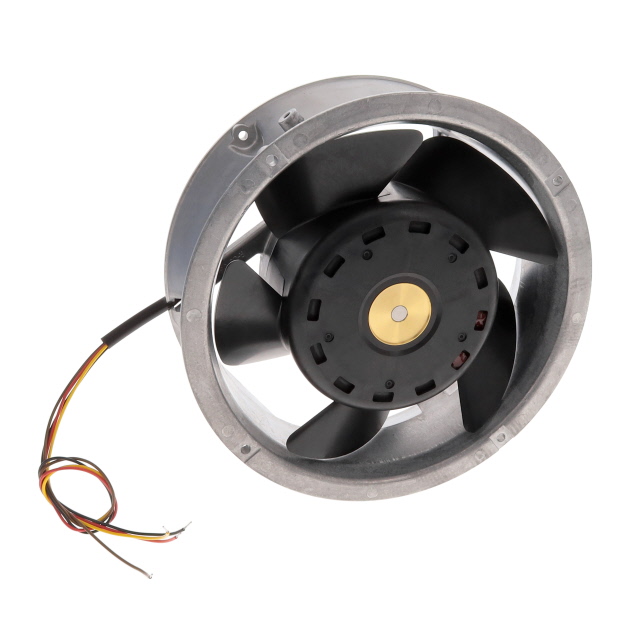

FAN AXIAL 200X70MM 24VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 200X70MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Air Flow	Air Flow	Voltage - Rated	Voltage Range [Min]	Voltage Range [Max]	RPM	Material - Blade	Approval Agency	Static Pressure	Static Pressure	Width [y]	Power (Watts)	Noise	Bearing Type	Current Rating (Amps)	Material - Frame	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Features	Size / Dimension [diameter]	Size / Dimension	Termination	Lifetime @ Temp.
Sanyo Denki America Inc. 109E2024S001	369 CFM	10.33 mł/min	24 VDC	21.6 VDC	26.4 VDC	3200 RPM	Plastic	CSA TUV UR	287.1 Pa	1.153 in H2O	70 mm	45.6 W	57 dB	Ball	1.9 A	Aluminum	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	Speed Sensor (Tach)	200 mm	Round	3 Wire Leads	40000 Hrs
Sanyo Denki America Inc. 109E2024S002	369 CFM	10.33 mł/min	24 VDC	21.6 VDC	26.4 VDC	3200 RPM	Plastic	CSA TUV UR	287.1 Pa	1.153 in H2O	70 mm	45.6 W	57 dB	Ball	1.9 A	Aluminum	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C		200 mm	Round	2 Wire Leads	40000 Hrs
Sanyo Denki America Inc. 109E2024AS001	317.8 CFM	8.9 m³/min	24 VDC	21.6 VDC	26.4 VDC	3200 RPM	Plastic	CSA TUV UR	287.1 Pa	1.153 in H2O	70 mm	45.6 W	57 dB	Ball	1.9 A	Aluminum	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	Speed Sensor (Tach)	200 mm	Round	3 Wire Leads	40000 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
