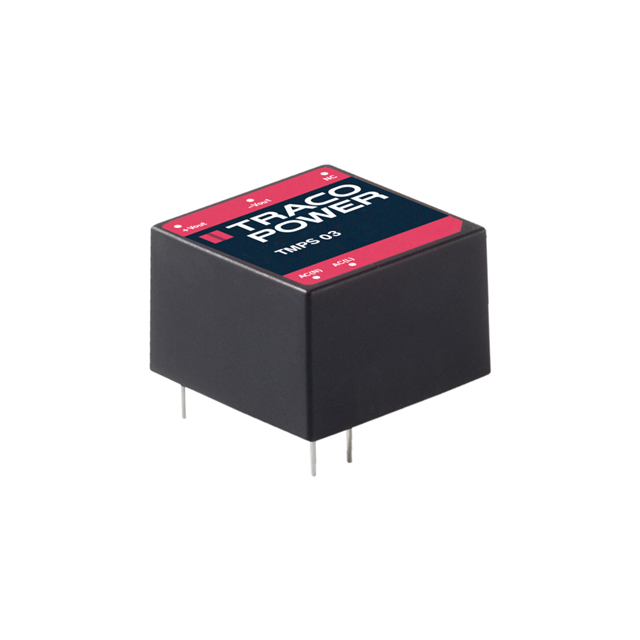

TMPS 03-124
ActiveTraco Power
AC/DC CONVERTER 24V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMPS 03-124
ActiveTraco Power
AC/DC CONVERTER 24V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMPS 03-124 |
|---|---|
| Applications | Household Appliances, ITE (Commercial) |
| Approval Agency | CB, cURus, CE |
| Current - Output (Max) [Max] | 125 mA |
| Efficiency | 78 % |
| Features | Universal Input |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 5-DIP Module |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 1 in |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.64 in |
| Size / Dimension [z] | 16.3 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 85 VAC, 120 VDC |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 18.39 | |
| 10 | $ 16.89 | |||
| 25 | $ 16.32 | |||
| 50 | $ 15.91 | |||
| 100 | $ 15.51 | |||
| 250 | $ 14.99 | |||
| 500 | $ 14.61 | |||
Description
General part information
TMPS 03 Series
Enclosed AC DC Converters 1 Output 24V 125mA 85 ~ 264 VAC, 120 ~ 370 VDC Input
