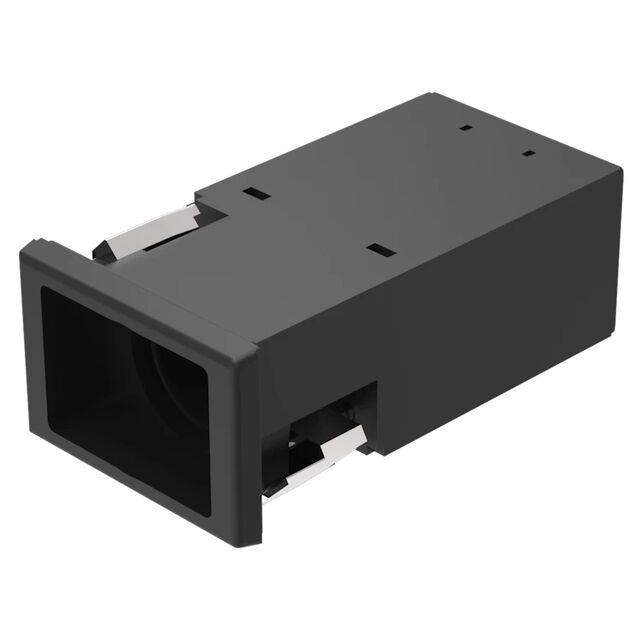

22-221.014

Active

EAO

SWITCH PB SPST-NO 10A 400V

Search across all available documentation for this part.

Active

EAO

SWITCH PB SPST-NO 10A 400V

Technical Specifications

Parameters and characteristics for this part

Specification	22-221.014

Actuator Marking	No Marking
Actuator Type	Rectangular, Button (Not Included)
Circuit	SPST-NO
Current Rating (Amps)	10 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	30 mm
Panel Cutout Dimensions [y]	22 mm
Switch Function	Off-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Type	Standard
Voltage Rating - AC	400 V

Part	Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Circuit	Ingress Protection	Switch Function	Mounting Type	Termination Style	Current Rating (Amps)	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Actuator Marking	Mechanical Life
EAO 22-221.014	Standard	30 mm	22 mm	SPST-NO	IP65 - Dust Tight Water Resistant	Off-On	Panel Mount Front	Quick Connect - 0.250" (6.3mm)	10 A	400 V	-25 °C	85 °C	Rectangular Button (Not Included)	No Marking	1000000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front
