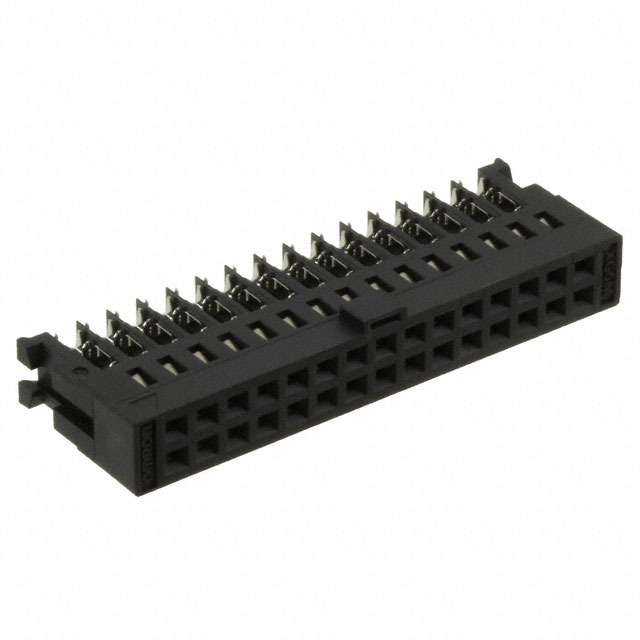

XG5M-3435-N

Active

Omron Electronics Inc-EMC Div

CONN SOCKET 34POS IDC 26-28AWG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

XG5M-3435-N

Active

Omron Electronics Inc-EMC Div

CONN SOCKET 34POS IDC 26-28AWG

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XG5M-3435-N

Cable Termination	IDC
Color	Black
Connector Type	Socket
Contact Finish	Gold
Contact Finish Thickness	5.9 µin
Contact Finish Thickness	0.15 µm
Contact Type	Female Socket
Features	Polarizing Tab
Mounting Type	Free Hanging (In-Line)
Number of Positions	34
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Discrete

XG5M Series

Part	Cable Termination	Wire Gauge	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Row Spacing [x]	Row Spacing	Wire Type	Pitch [x]	Pitch [x]	Number of Rows	Color	Contact Finish	Contact Type	Number of Positions	Connector Type	Number of Positions	Features
Omron Electronics Inc-EMC Div XG5M-5032-N	IDC	24 AWG	Free Hanging (In-Line)	5.9 µin	0.15 µm	0.1 in	2.54 mm	Discrete	2.54 mm	0.1 in	2	Black	Gold	Female Socket	50	Receptacle
Omron Electronics Inc-EMC Div XG5M-1635-N	IDC		Free Hanging (In-Line)	5.9 µin	0.15 µm	0.1 in	2.54 mm	Discrete	2.54 mm	0.1 in	2	Black	Gold	Female Socket		Receptacle	16
Omron Electronics Inc-EMC Div XG5M-1034-N	IDC		Free Hanging (In-Line)	5.9 µin	0.15 µm	0.1 in	2.54 mm	Discrete	2.54 mm	0.1 in	2	Black	Gold	Female Socket	10	Socket
Omron Electronics Inc-EMC Div XG5M-2632-N	IDC	24 AWG	Free Hanging (In-Line)	5.9 µin	0.15 µm	0.1 in	2.54 mm	Discrete	2.54 mm	0.1 in	2	Black	Gold	Female Socket	26	Receptacle
Omron Electronics Inc-EMC Div XG5M-6033-N	IDC	24 AWG	Free Hanging (In-Line)	5.9 µin	0.15 µm	0.1 in	2.54 mm	Discrete	2.54 mm	0.1 in	2	Black	Gold	Female Socket	60	Socket		Polarizing Tab
Omron Electronics Inc-EMC Div XG5M-1032-N	IDC	24 AWG	Free Hanging (In-Line)	5.9 µin	0.15 µm	0.1 in	2.54 mm	Discrete	2.54 mm	0.1 in	2	Black	Gold	Female Socket	10	Receptacle
Omron Electronics Inc-EMC Div XG5M-4032-N	IDC	24 AWG	Free Hanging (In-Line)	5.9 µin	0.15 µm	0.1 in	2.54 mm	Discrete	2.54 mm	0.1 in	2	Black	Gold	Female Socket	40	Receptacle
Omron Electronics Inc-EMC Div XG5M-5033-N	IDC	24 AWG	Free Hanging (In-Line)	5.9 µin	0.15 µm	0.1 in	2.54 mm	Discrete	2.54 mm	0.1 in	2	Black	Gold	Female Socket	50	Socket		Polarizing Tab
Omron Electronics Inc-EMC Div XG5M-3435-N	IDC		Free Hanging (In-Line)	5.9 µin	0.15 µm	0.1 in	2.54 mm	Discrete	2.54 mm	0.1 in	2	Black	Gold	Female Socket	34	Socket		Polarizing Tab
Omron Electronics Inc-EMC Div XG5M-6436-N	IDC		Free Hanging (In-Line)	5.9 µin	0.15 µm	0.1 in	2.54 mm	Discrete	2.54 mm	0.1 in	2	Black	Gold	Female Socket	64	Socket		Polarizing Tab
