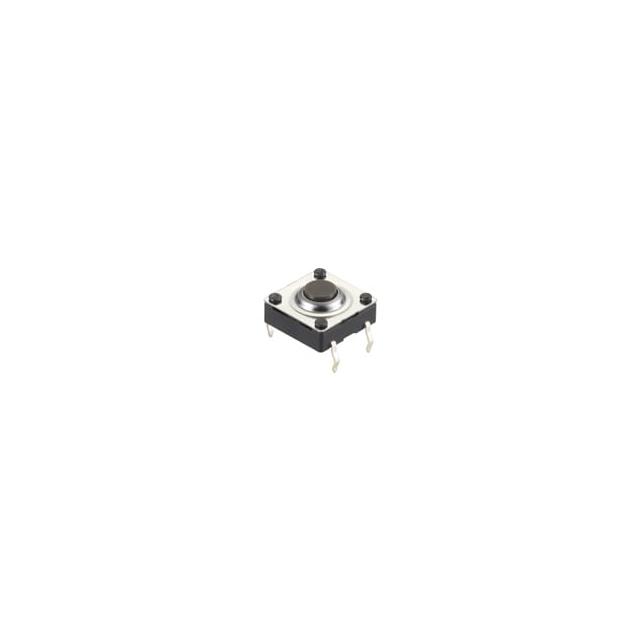

SKQBARA010

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	SKQBARA010

Actuator Height off PCB, Vertical	5 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Outline [x]	10 mm
Outline [y]	10 mm
Switch Function	Off-Mom
Switch Travel [custom]	0.3 mm
Termination Style	PC Pin

Part	Actuator Height off PCB, Vertical	Contact Rating @ Voltage	Switch Travel [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Mounting Type	Circuit	Illumination	Mechanical Life	Actuator Type	Termination Style	Actuator Orientation	Switch Function	Outline [y]	Outline [x]
Alps Alpine SKQBASA010	5 mm	0.05 A 12 VDC	0.3 mm	90 °C	-40 °C	260 gf	Through Hole	SPST-NO	Non-Illuminated	100000 Cycles	Standard	PC Pin	Top Actuated	Off-Mom	10 mm	10 mm
Alps Alpine SKQBARA010	5 mm	0.05 A 12 VDC	0.3 mm	90 °C	-40 °C		Through Hole	SPST-NO	Non-Illuminated	100000 Cycles	Standard	PC Pin	Top Actuated	Off-Mom	10 mm	10 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole

Technical documentation and resources

No documents available
