WR9QI250CCPNA-N(R6B)

Active

GlobTek, Inc.

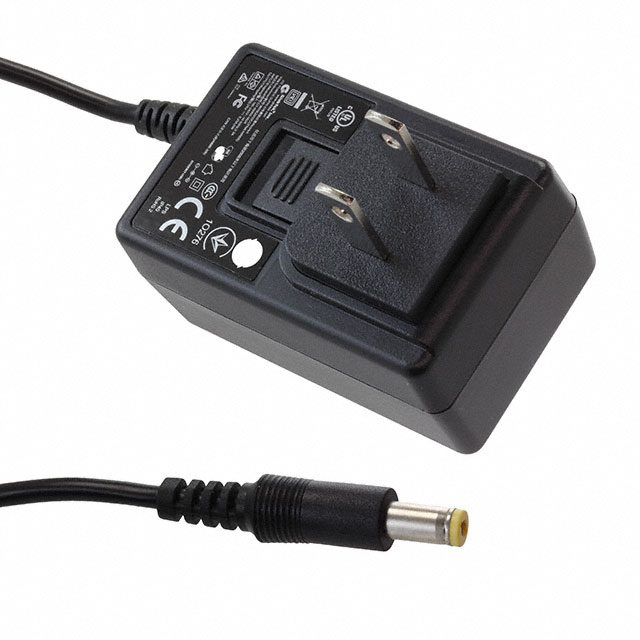

AC/DC WALL MOUNT ADAPTER 24V 6W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 24V 6W

Technical Specifications

Parameters and characteristics for this part

Specification	WR9QI250CCPNA-N(R6B)

Applications	ITE (Commercial)
Approval Agency	PSE, BSI, EAC, CCC, FCC, cULus, CB, VCCI, RCM, UKRSepro, CE, LPS, GS
Cord Length	1.83 m
Cord Length	72 in
Current - Output (Max) [Max]	250 mA
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	11 mm
Polarization	Positive Center
Power (Watts)	6 W
Region Utilized	International
Size / Dimension [x]	1.59 in
Size / Dimension [x]	40.5 mm
Size / Dimension [y]	2.52 "
Size / Dimension [y]	64 mm
Size / Dimension [z]	30 mm
Size / Dimension [z]	1.18 in
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V

Part	Efficiency	Input Type	Polarization	Output Connector	Output Connector [diameter]	Output Connector [x]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Current - Output (Max) [Max]	Region Utilized	Form	Approval Agency	Standard Number	Input Connector	Voltage - Output	Cord Length	Cord Length	No Load Power Consumption [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input [Min]	Voltage - Input [Max]	Output Connector [z]
GlobTek, Inc. WR9QI250LCPNAIMR6B	Level VI	Multi-Blade (Sold Separately)	Positive Center	Barrel Plug	2.5 mm 5.5 mm	11 mm	6 W	50 °C	-20 C	Household Appliances ITE (Commercial) Medical	250 mA	International	Wall Mount (Class II)	BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UKRSepro UL VCCI	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Multi-Blade	24 V	1.5 m	59 in	75 mW	36.8 mm	74 mm	1.45 in	1.71 "	2.91 "	43.5 mm	90 VAC	264 VAC
GlobTek, Inc. WR9QI250CCPNA-N(R6B)	Level VI	Multi-Blade (Sold Separately)	Positive Center	Barrel Plug	2.1 mm 5.5 mm		6 W	40 °C	0 °C	ITE (Commercial)	250 mA	International	Wall Mount (Class II)	BSI CB CCC CE cULus EAC FCC GS LPS PSE RCM UKRSepro VCCI	60950-1	Multi-Blade	24 V	1.83 m	72 in	75 mW	30 mm	64 mm	1.18 in	1.59 in	2.52 "	40.5 mm	90 VAC	264 VAC	11 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24V 6 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
