XP2P052N
ActiveYAGEO XSEMI

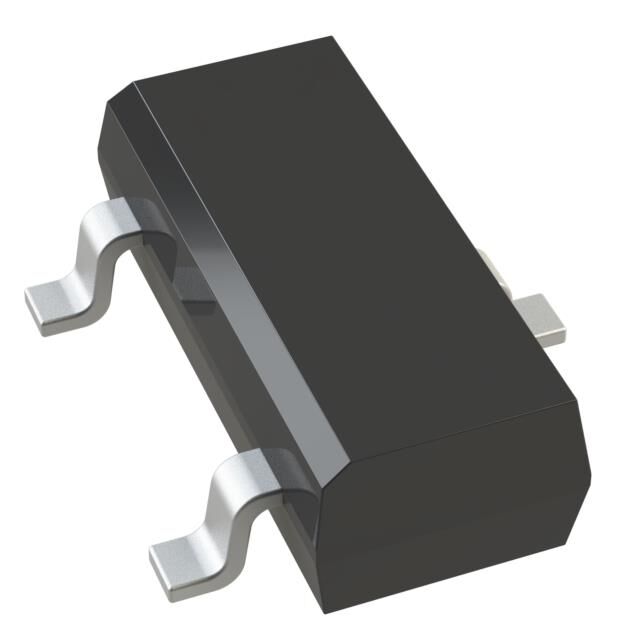

MOSFET P-CH 20V 4A SOT23
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XP2P052N
ActiveYAGEO XSEMI
MOSFET P-CH 20V 4A SOT23
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XP2P052N |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 4 A |
| Drain to Source Voltage (Vdss) | 20 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5 V, 1.8 V |
| FET Type | P-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 14.4 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 1440 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SOT-23-3, TO-236-3, SC-59 |
| Power Dissipation (Max) | 1.25 W |
| Rds On (Max) @ Id, Vgs | 52 mOhm |
| Supplier Device Package | SOT-23 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 8 V |
| Vgs(th) (Max) @ Id | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.56 | |
| 10 | $ 0.34 | |||
| 100 | $ 0.17 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.15 | |||
| Digi-Reel® | 1 | $ 0.56 | ||
| 10 | $ 0.34 | |||
| 100 | $ 0.17 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.15 | |||
| Tape & Reel (TR) | 3000 | $ 0.11 | ||
| 6000 | $ 0.10 | |||
| 9000 | $ 0.09 | |||
Description
General part information
XP2P052N
P-Channel 20 V 4A (Ta) 1.25W (Ta) Surface Mount SOT-23
