T5D012510M4

Obsolete

HELLERMANNTYTON

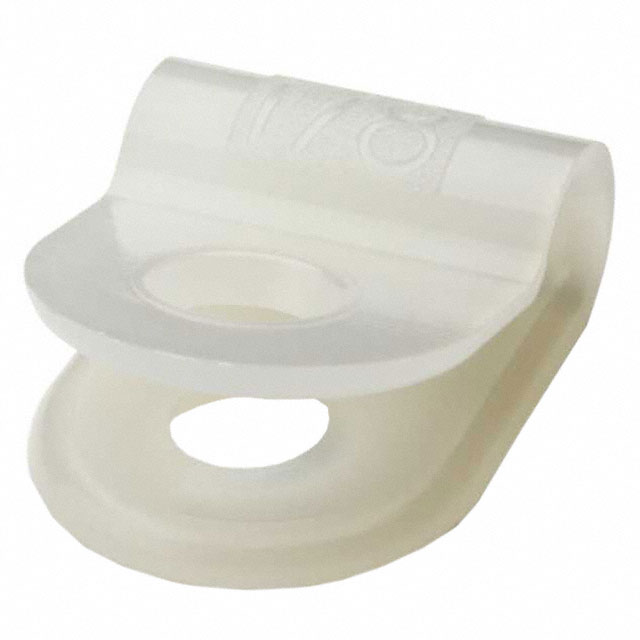

CBL CLIP P-TYPE WHITE FASTENER

Search across all available documentation for this part.

Obsolete

HELLERMANNTYTON

CBL CLIP P-TYPE WHITE FASTENER

Technical Specifications

Parameters and characteristics for this part

Specification	T5D012510M4

Bundle Center to Mounting Center	0.315 in
Bundle Center to Mounting Center	8 mm
Color	White
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Material Thickness	0.05 in
Material Thickness	1.27 mm
Mounting Type	Fastener
Opening Size	3.18 mm
Opening Size [z]	0.125 in
Panel Hole Size	5.16 mm
Panel Hole Size	0.203 in
Type	Clip, P-Type

Part	Type	Panel Hole Size	Panel Hole Size	Color	Opening Size [z]	Opening Size	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Material	Material Flammability Rating	Mounting Type	Material Thickness	Material Thickness
HELLERMANNTYTON T5D012510M4	Clip P-Type	5.16 mm	0.203 in	White	0.125 in	3.18 mm	0.315 in	8 mm	Polyamide (PA66) Nylon 6/6	UL94 V-2	Fastener	0.05 in	1.27 mm
HELLERMANNTYTON T5D01250M4	Clip P-Type	5.16 mm	0.203 in	Black	0.125 in	3.18 mm	0.315 in	8 mm	Polyamide (PA66) Nylon 6/6	UL94 V-2	Fastener	0.05 in	1.27 mm
HELLERMANNTYTON T5D012510C2
