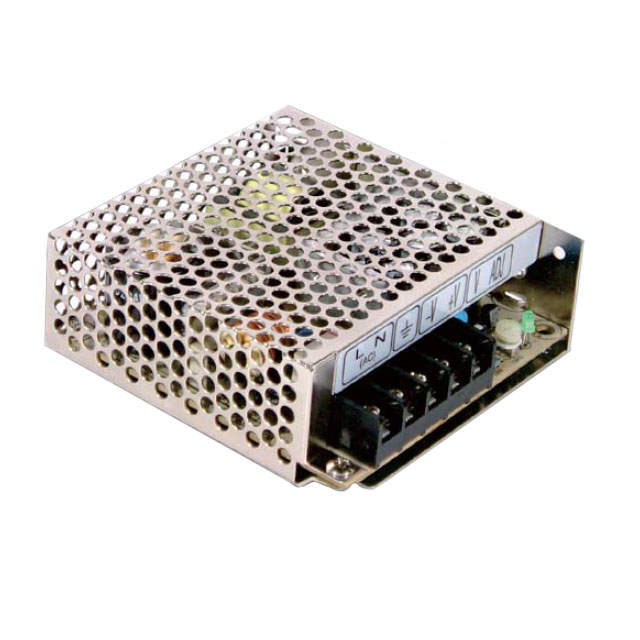

RS-50-48

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 48V 53W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 48V 53W

Technical Specifications

Parameters and characteristics for this part

Specification	RS-50-48

Applications	ITE (Commercial)
Approval Agency	cURus, TUV, EAC, CE, CB, CCC
Current - Output 1	1.1 A
Efficiency	89 %
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	53 W
Size / Dimension [x]	99 mm
Size / Dimension [x]	3.9 "
Size / Dimension [y]	3.82 in
Size / Dimension [y]	97 mm
Size / Dimension [z]	36 mm
Size / Dimension [z]	1.42 in
Type	Enclosed
Voltage - Input [Max]	264 VAC, 373 VDC
Voltage - Input [Min]	88 VAC, 125 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Type	Number of Outputs	Features	Applications	Power (Watts)	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Current - Output 1
MEAN WELL USA Inc. RS-50-3.3	Enclosed	1	Adjustable Output Universal Input	ITE (Commercial)	33 W	3.3 V	88 VAC 125 VDC	264 VAC 373 VDC	CB CCC CE cURus EAC TUV	3000 V	-25 °C	70 °C	Chassis Mount	99 mm	3.82 in	36 mm	3.9 "	97 mm	1.42 in	78 %	10 A
MEAN WELL USA Inc. RS-50-5	Enclosed	1	Adjustable Output Universal Input	ITE (Commercial)	50 W	5 V	88 VAC 125 VDC	264 VAC 373 VDC	CB CCC CE cURus EAC TUV	3000 V	-25 °C	70 °C	Chassis Mount	99 mm	3.82 in	36 mm	3.9 "	97 mm	1.42 in	83 %	10 A
MEAN WELL USA Inc. RS-50-48	Enclosed	1	Adjustable Output Universal Input	ITE (Commercial)	53 W	48 V	88 VAC 125 VDC	264 VAC 373 VDC	CB CCC CE cURus EAC TUV	3000 V	-25 °C	70 °C	Chassis Mount	99 mm	3.82 in	36 mm	3.9 "	97 mm	1.42 in	89 %	1.1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 48V 88 ~ 264 VAC, 125 ~ 373 VDC Input
