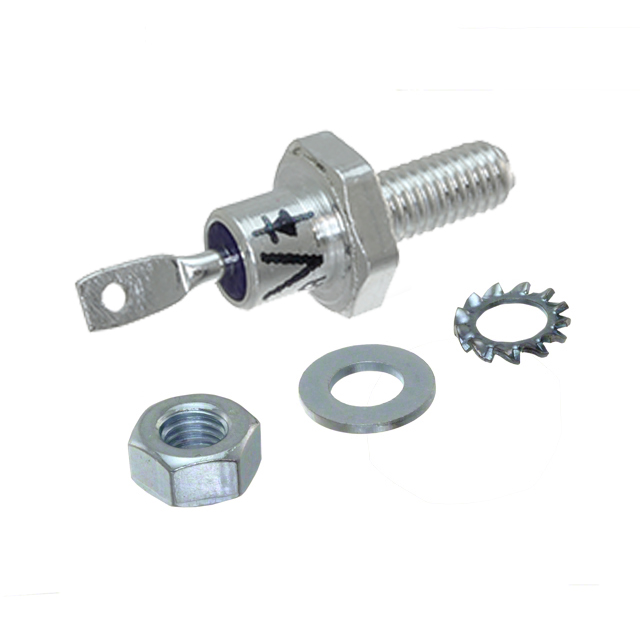

VS-16FR120M

Active

Vishay General Semiconductor - Diodes Division

DIODE GP REV 1.2KV 16A DO203AA

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

DIODE GP REV 1.2KV 16A DO203AA

Technical Specifications

Parameters and characteristics for this part

Specification	VS-16FR120M

Current - Average Rectified (Io)	16 A
Mounting Type	Chassis, Stud Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-65 C
Package / Case	Stud, DO-203AA, DO-4
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	DO-203AA
Supplier Device Package	DO-4
Technology	Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) [Max]	1.2 kV
Voltage - Forward (Vf) (Max) @ If	1.23 V

Part	Speed	Speed	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Technology	Supplier Device Package	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
Vishay General Semiconductor - Diodes Division VS-16FR120	Standard Recovery >500ns	200 mA	16 A	12 mA	1.2 kV	DO-203AA DO-4 Stud	Chassis Stud Mount	1.23 V	Reverse Polarity Standard	DO-203AA	DO-4	175 ░C	-65 C
Vishay General Semiconductor - Diodes Division VS-16FR120M	Standard Recovery >500ns	200 mA	16 A		1.2 kV	DO-203AA DO-4 Stud	Chassis Stud Mount	1.23 V	Reverse Polarity Standard	DO-203AA	DO-4	175 ░C	-65 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 1200 V 16A Chassis, Stud Mount DO-203AA (DO-4)
