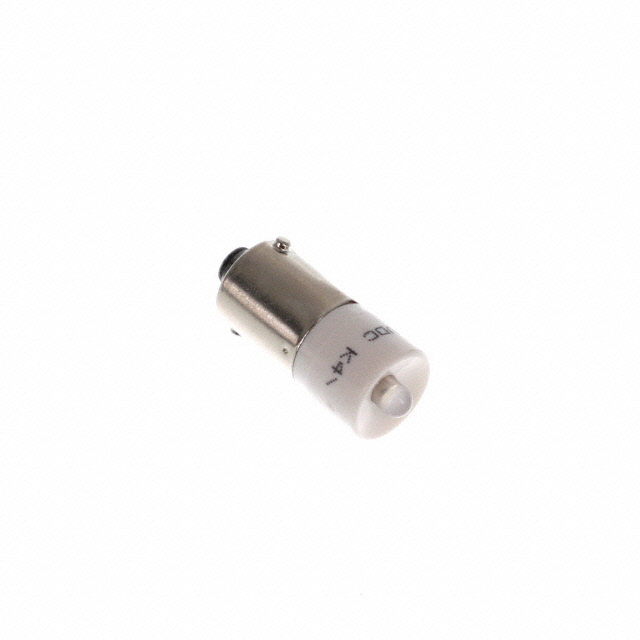

10-2524.3049
ActiveEAO
LAMP LED BA9S WHT 130V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10-2524.3049
ActiveEAO
LAMP LED BA9S WHT 130V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 10-2524.3049 |
|---|---|
| Applications | General Purpose Lighting |
| Base Type | Miniature Bayonet (BA9S) |
| Can Replace Lamps | Multiple Miniature Bayonet Lamps |
| Color | White |
| Configuration | Single |
| Millicandela Rating | 225 mcd |
| Size / Dimension [diameter] | 0.394 in |
| Size / Dimension [diameter] | 10 mm |
| Size / Dimension [x] | 1.142 inches |
| Size / Dimension [x] | 29 mm |
| Voltage - Forward (Vf) (Typ) | 130 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.00 | |
| 10 | $ 18.98 | |||
| 25 | $ 17.89 | |||
| 50 | $ 17.11 | |||
| 100 | $ 16.36 | |||
| 250 | $ 15.42 | |||
| 500 | $ 14.75 | |||
Description
General part information
10-2524 Series
LED Lamp Replacement White Miniature Bayonet (BA9S) 130V 0.394" Dia x 1.142" L (10.00mm x 29.00mm)
