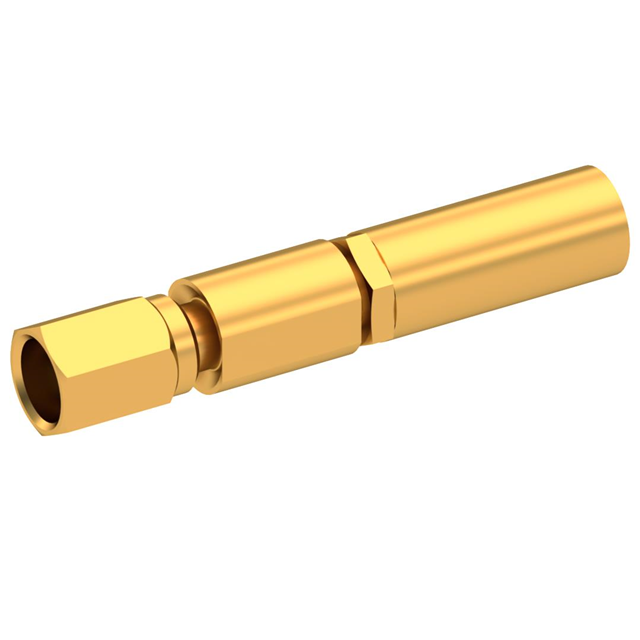

7002-1572-002
ActiveRadiall USA, Inc.
SSMC F STR NA CR 2/50S
Deep-Dive with AI
Search across all available documentation for this part.
7002-1572-002
ActiveRadiall USA, Inc.
SSMC F STR NA CR 2/50S
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7002-1572-002 |
|---|---|
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Cable Group | 196 |
| Cable Group | RG-178 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SSMC |
| Connector Type | Plug, Female Socket |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 12.4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.05 | |
| 10 | $ 24.56 | |||
| 25 | $ 23.50 | |||
| 50 | $ 22.74 | |||
| 100 | $ 21.98 | |||
| 250 | $ 20.77 | |||
Description
General part information
7002-1572 Series
SSMC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
Documents
Technical documentation and resources
No documents available
