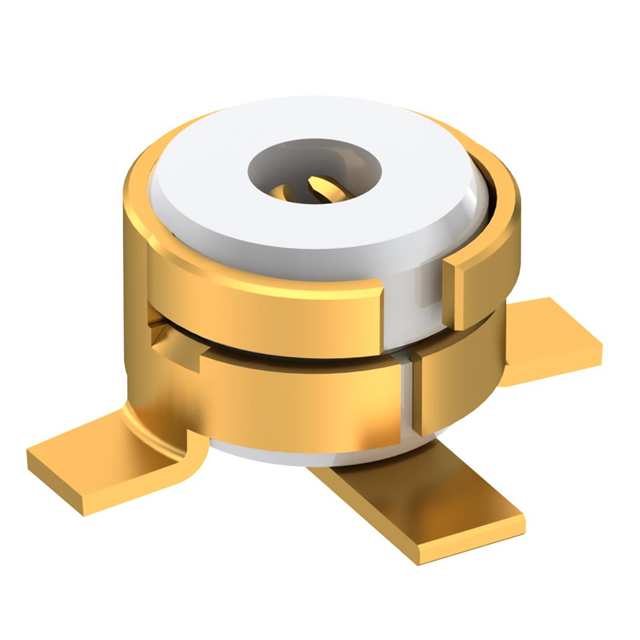

R209408012

Active

Radiall USA, Inc.

MMS F STR TR100

Search across all available documentation for this part.

Active

Radiall USA, Inc.

MMS F STR TR100

Technical Specifications

Parameters and characteristics for this part

Specification	R209408012

Body Finish	Gold
Body Material	Phosphor Bronze
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	50
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	50 V

Part	Mating Cycles	Voltage Rating	Body Material	Number of Ports	Frequency - Max [Max]	Connector Type	Housing Color	Contact Termination	Mounting Type	Impedance	Dielectric Material	Center Contact Material	Center Contact Plating	Body Finish	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Shield Termination
Radiall USA, Inc. R209408052	50	50 V	Phosphor Bronze	1	6000 MHz	Jack Male Pin	Gold	Solder	Surface Mount	50 Ohms	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Gold	Gold	Snap-On	125 °C	-40 °C	Solder
Radiall USA, Inc. R209408012	50	50 V	Phosphor Bronze	1	6000 MHz	Female Socket Receptacle	Gold	Solder	Surface Mount	50 Ohms	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Gold	Gold	Snap-On	125 °C	-40 °C	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Receptacle, Female Socket 50 Ohms Surface Mount Solder
