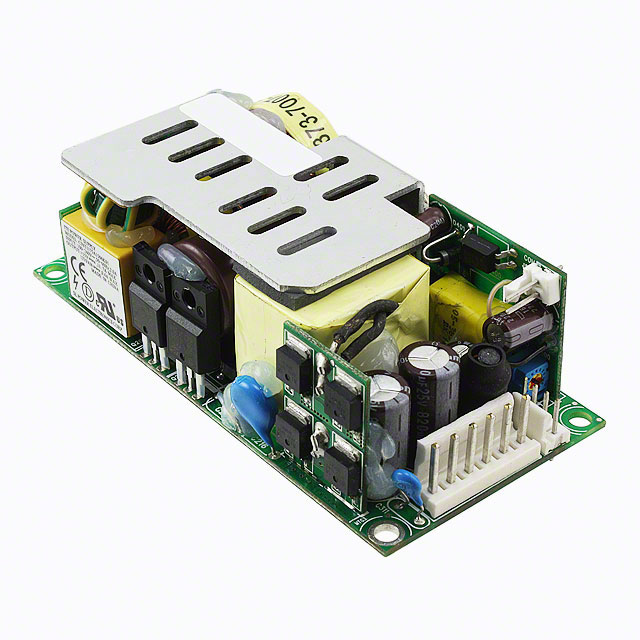

CINT1175A5606K01

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 56V 120W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet CINT1175 Series Brochure

CINT1175A5606K01

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 56V 120W

Deep-Dive with AI

DocumentsDatasheet CINT1175 Series Brochure

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CINT1175A5606K01

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	2.1 A
Efficiency	90 %
Features	Universal Input, DC Input Capable, Adjustable Output, Standby Output
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	120 W, 175 W
Size / Dimension [x]	101.6 mm
Size / Dimension [x]	4 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	1.3 "
Size / Dimension [z]	33 mm
Type	Open Frame
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	56 V

CINT1175 Series

Part	Power (Watts)	Approval Agency	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 1	Type	Current - Output 1	Number of Outputs	Voltage - Isolation	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Features
SL POWER / Advanced Energy CINT1175A1206K01	120 W 175 W	CE	ITE (Commercial)	101.6 mm	1.3 "	2 in	4 in	50.8 mm	33 mm	Chassis Mount	240 VAC	100 VAC	12 V	Open Frame	10 A	1	4000 V	90 %	-10 °C	70 °C	Adjustable Output DC Input Capable Standby Output Universal Input
SL POWER / Advanced Energy CINT1175A2406K01	120 W 175 W	CE	ITE (Commercial)	101.6 mm	1.3 "	2 in	4 in	50.8 mm	33 mm	Chassis Mount	240 VAC	100 VAC	24 V	Open Frame	5 A	1	4000 V	90 %	-10 °C	70 °C	Adjustable Output DC Input Capable Standby Output Universal Input
SL POWER / Advanced Energy CINT1175A4806K01	120 W 175 W	CE	ITE (Commercial)	101.6 mm	1.3 "	2 in	4 in	50.8 mm	33 mm	Chassis Mount	240 VAC	100 VAC	48 V	Open Frame	2.5 A	1	4000 V	90 %	-10 °C	70 °C	Adjustable Output DC Input Capable Standby Output Universal Input
SL POWER / Advanced Energy CINT1175A5606K01	120 W 175 W	CE	ITE (Commercial)	101.6 mm	1.3 "	2 in	4 in	50.8 mm	33 mm	Chassis Mount	240 VAC	100 VAC	56 V	Open Frame	2.1 A	1	4000 V	90 %	-10 °C	70 °C	Adjustable Output DC Input Capable Standby Output Universal Input
SL POWER / Advanced Energy CINT1175A1506K01	120 W 175 W	CE	ITE (Commercial)	101.6 mm	1.3 "	2 in	4 in	50.8 mm	33 mm	Chassis Mount	240 VAC	100 VAC	15 V	Open Frame	8 A	1	4000 V	90 %	-10 °C	70 °C	Adjustable Output DC Input Capable Standby Output Universal Input

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	90	$ 120.85

Description

General part information

CINT1175 Series

Open Frame AC DC Converters 1 Output 56V 100 ~ 240 VAC Input

Documents

Technical documentation and resources

Datasheet

CINT1175 Series Brochure

Datasheet
