JR25PK-24P(71)

Obsolete

Hirose Electric USA, Inc.

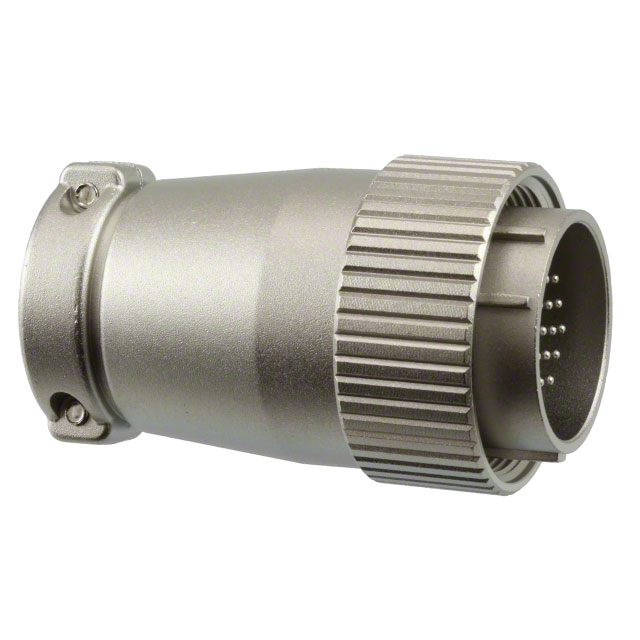

CONN PLUG MALE 24P SOLDER CUP

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN PLUG MALE 24P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JR25PK-24P(71)

Backshell Material, Plating	Aluminum Alloy, Nickel
Cable Opening [x]	0.709 in
Cable Opening [x]	18 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	118.1 µin
Contact Finish Thickness - Mating	3 µm
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Features	Cable Clamp, Coupling Nut, Backshell
Insert Material	Phenol Formaldehyde (PF)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	24
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	25
Shielding	Unshielded
Voltage Rating	350 V, 250 VAC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Housing Color	Number of Positions	Shell Size - Insert	Note	Shielding	Insert Material	Type	Shell Finish	Material Flammability Rating	Contact Type	Contact Shape	Shell Material	Orientation	Features	Connector Type	Contact Size	Contact Material	Color	Backshell Material, Plating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Primary Material	Voltage Rating	Contact Finish - Mating	Cable Opening [x]	Cable Opening [x]	Contact Finish Thickness - Mating
Hirose Electric USA, Inc. JR25PK-24PC(71)	-25 °C	85 °C	Free Hanging (In-Line)	Silver	24	25	Contacts Not Included	Unshielded	Polycarbonate (PC)	For Male Pins	Nickel	UL94 V-0	Crimp	Circular	Aluminum Alloy	Keyed	Backshell Cable Clamp Coupling Nut	Plug Housing	1 mm
Hirose Electric USA, Inc. JR25PK-24S(71)	-25 °C	85 °C	Free Hanging (In-Line)		24	25		Unshielded	Phenol Formaldehyde (PF)		Nickel	UL94 V-0			Aluminum Alloy	Keyed	Backshell Cable Clamp Coupling Nut	Female Sockets Plug		Copper Alloy	Silver	Aluminum Alloy Nickel	78.7 µin	2 µm	5 A	Metal	250 VAC 350 V	Silver	0.709 in	18 mm
Hirose Electric USA, Inc. JR25PK-5P(71)											Nickel				Aluminum Alloy											Metal
Hirose Electric USA, Inc. JR25PK-24P(71)	-25 °C	85 °C	Free Hanging (In-Line)		24	25		Unshielded	Phenol Formaldehyde (PF)		Nickel	UL94 V-0			Aluminum Alloy	Keyed	Backshell Cable Clamp Coupling Nut	Male Pins Plug		Copper Alloy	Silver	Aluminum Alloy Nickel		118.1 µin	5 A	Metal	250 VAC 350 V	Silver	0.709 in	18 mm	3 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

24 Position Circular Connector Plug, Male Pins Solder Cup
