TS13102EVB

Obsolete

Semtech Corporation

EVB TS13102 PART NUMBER 3 CHANNE

Search across all available documentation for this part.

Obsolete

Semtech Corporation

EVB TS13102 PART NUMBER 3 CHANNE

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Number of Outputs	Rds On (Typ)	Voltage - Load	Switch Type	Operating Temperature [Min]	Operating Temperature [Max]	Fault Protection	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Supplier Device Package	Current - Output (Max) [Max]	Ratio - Input:Output [custom]	Mounting Type	Interface	Type	Function	Primary Attributes	Contents	Supplied Contents	Utilized IC / Part
Semtech Corporation TS13102-QFNR	16-VFQFN Exposed Pad	1	290 mOhm	60 V	AC Switch	-40 °C	125 ¯C	Current Limiting	5.5 V	4 V	16-MLPQ (3x3)	2.5 A	1:1	Surface Mount	Clock
Semtech Corporation TS13102EVB																Interface	Relay	Solid State Relay	Board(s)	Board(s)	TS13102

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

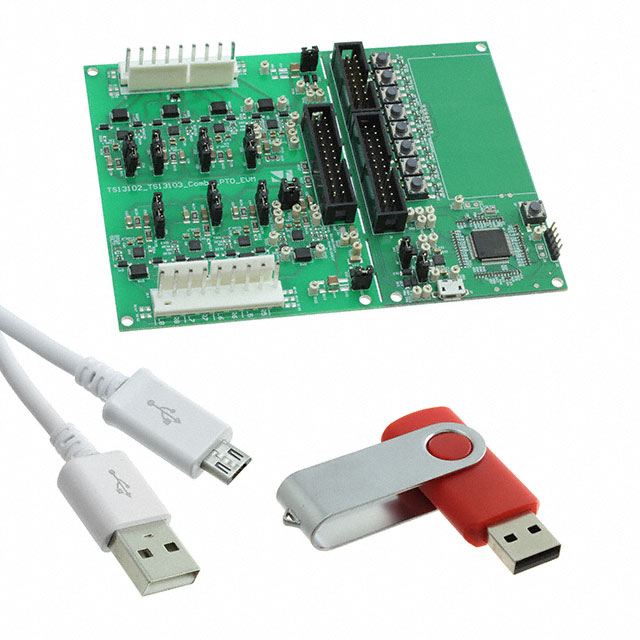

TS13102 Relay Interface Evaluation Board

Technical documentation and resources

No documents available
