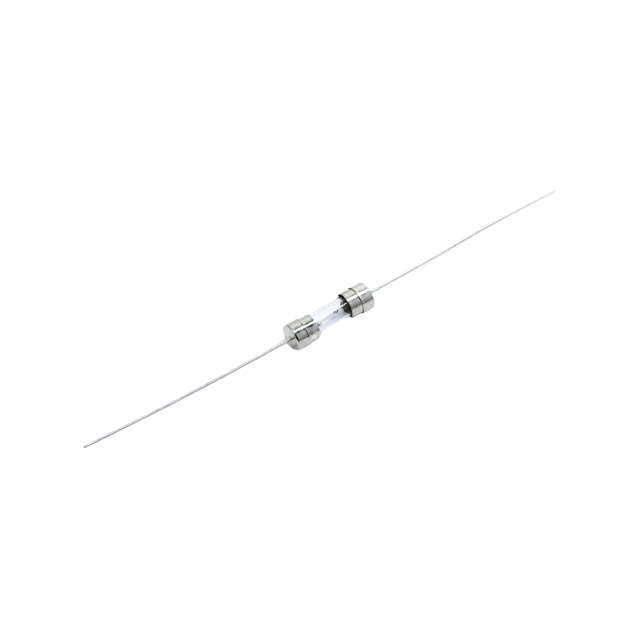

TSE-P-8A

Active

OptiFuse

FUSE GLASS 8A 250VAC 2AG

Search across all available documentation for this part.

Active

OptiFuse

FUSE GLASS 8A 250VAC 2AG

Technical Specifications

Parameters and characteristics for this part

Specification	TSE-P-8A

Approval Agency	cURus, UL 248
Breaking Capacity @ Rated Voltage	100 A
Current Rating (Amps)	8 A
Melting I˛t	147.9
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	2AG
Package / Case [x]	5 mm
Package / Case [y]	15 mm
Response Time	Slow Blow
Size / Dimension [diameter]	5 mm
Size / Dimension [diameter]	0.197 "
Size / Dimension [z]	16 mm
Size / Dimension [z]	0.63 "
Voltage Rating - AC	250 V

Part	Melting I˛t	Approval Agency	Breaking Capacity @ Rated Voltage	Response Time	Package / Case [x]	Package / Case [y]	Package / Case	Voltage Rating - AC	Current Rating (Amps)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Melting I²t
OptiFuse TSE-P-5A	37.27	cURus UL 248	100 A	Slow Blow	5 mm	15 mm	2AG	250 V	5 A	16 mm	0.63 "	5 mm	0.197 "	Through Hole	-55 °C	125 °C
OptiFuse TSE-P-3.15A		UL 248	100 A	Slow Blow	5 mm	15 mm	2AG	250 V	3.15 A	16 mm	0.63 "	5 mm	0.197 "	Through Hole	-55 °C	125 °C	9.83
OptiFuse TSE-P-8A	147.9	cURus UL 248	100 A	Slow Blow	5 mm	15 mm	2AG	250 V	8 A	16 mm	0.63 "	5 mm	0.197 "	Through Hole	-55 °C	125 °C
OptiFuse TSE-P-1.5A	6.635	UL 248	100 A	Slow Blow	5 mm	15 mm	2AG	250 V	1.5 A	16 mm	0.63 "	5 mm	0.197 "	Through Hole	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 A 250 V AC DC Fuse Cartridge, Glass Through Hole 2AG, 5mm x 15mm (Axial)
