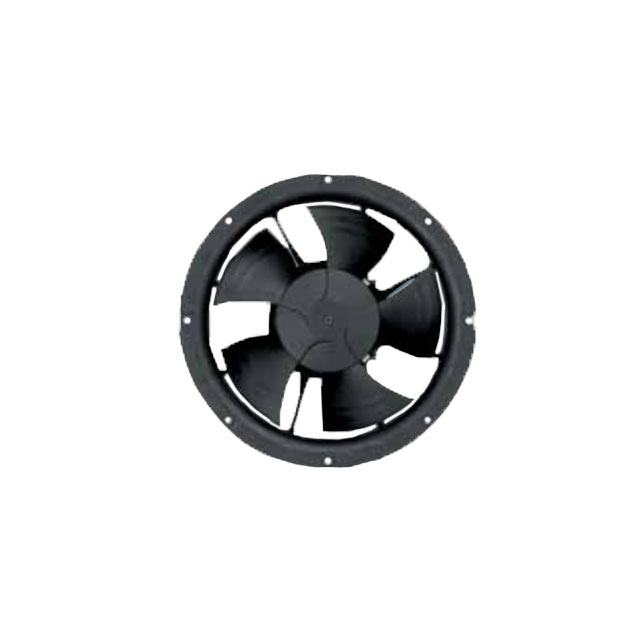

W1G172-EC95-01

Active

ebm-papst Inc.

FAN AXIAL

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	W1G172-EC95-01

Approval Agency	UL, VDE, EAC, CE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP), Dual Speed
Ingress Protection	IP55 - Dust Protected, Water Resistant
Material - Blade	Polyamide (PA), Nylon
Material - Frame	Polypropylene (PP)
Operating Temperature [Max]	50 °C
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-30 ░C
Operating Temperature [Min]	-30 °C
Power (Watts)	21 W
RPM [Max]	2500 RPM
RPM [Min]	1700 RPM
Size / Dimension	Round
Size / Dimension [diameter]	222 mm
Static Pressure	60 Pa
Static Pressure	0.241 in H2O
Termination	3 Wire Leads with Splice Terminals
Voltage - Rated	115 VAC
Width [y]	78.5 mm

Part	Approval Agency	Termination	Voltage - Rated	Material - Frame	Width [y]	Features	Size / Dimension [diameter]	Size / Dimension	Material - Blade	Power (Watts)	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	RPM [Max]	RPM [Min]	Static Pressure	Static Pressure	Ingress Protection	Bearing Type
ebm-papst Inc. W1G172-EC95-01	CE CSA EAC UL VDE	3 Wire Leads with Splice Terminals	115 VAC	Polypropylene (PP)	78.5 mm	Dual Speed Thermal Overload Protector (TOP)	222 mm	Round	Nylon Polyamide (PA)	21 W	Tubeaxial	-30 ░C	50 °C	-30 °C	50 °C	2500 RPM	1700 RPM	60 Pa	0.241 in H2O	IP55 - Dust Protected Water Resistant	Ball

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 115VAC Round - 222mm Dia Ball 3 Wire Leads with Splice Terminals
