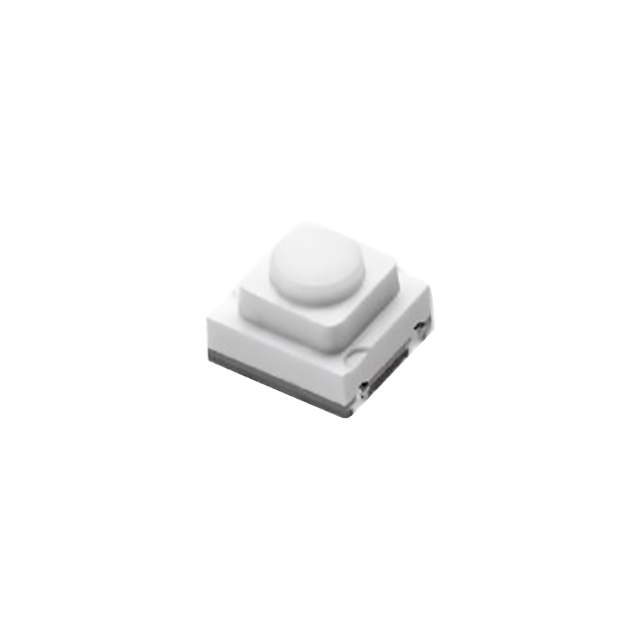

LS38J2-T

Obsolete

Citizen Finedevice Co Ltd

SWITCH TACTILE SPST-NO 0.02A 12V

Search across all available documentation for this part.

Obsolete

Citizen Finedevice Co Ltd

SWITCH TACTILE SPST-NO 0.02A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	LS38J2-T

Actuator Height off PCB, Vertical [z]	2.5 mm
Actuator Orientation	Top Actuated
Actuator Type	Round Button
Circuit	SPST-NO
Contact Rating @ Voltage	12 VDC, 0.02 A
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Surface Mount
Operating Force	180 gf
Outline [x]	3.3 mm
Outline [y]	3.1 mm
Switch Function	Off-Mom
Switch Travel	0.15 mm
Termination Style	SMD (SMT) Tab

Part	Actuator Orientation	Actuator Type	Mounting Type	Circuit	Contact Rating @ Voltage	Operating Force	Illumination	Switch Travel	Actuator Height off PCB, Vertical [z]	Outline [y]	Outline [x]	Mechanical Life	Ingress Protection	Switch Function	Termination Style
Citizen Finedevice Co Ltd LS38J2F	Top Actuated	Round Button	Surface Mount	SPST-NO	0.02 A 12 VDC	180 gf	Non-Illuminated	0.15 mm	2.5 mm	3.1 mm	3.3 mm	100000 Cycles	IP67 - Dust Tight Waterproof	Off-Mom	SMD (SMT) Tab
Citizen Finedevice Co Ltd LS38J2-T	Top Actuated	Round Button	Surface Mount	SPST-NO	0.02 A 12 VDC	180 gf	Non-Illuminated	0.15 mm	2.5 mm	3.1 mm	3.3 mm	100000 Cycles		Off-Mom	SMD (SMT) Tab

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
