0191710009

Obsolete

Molex

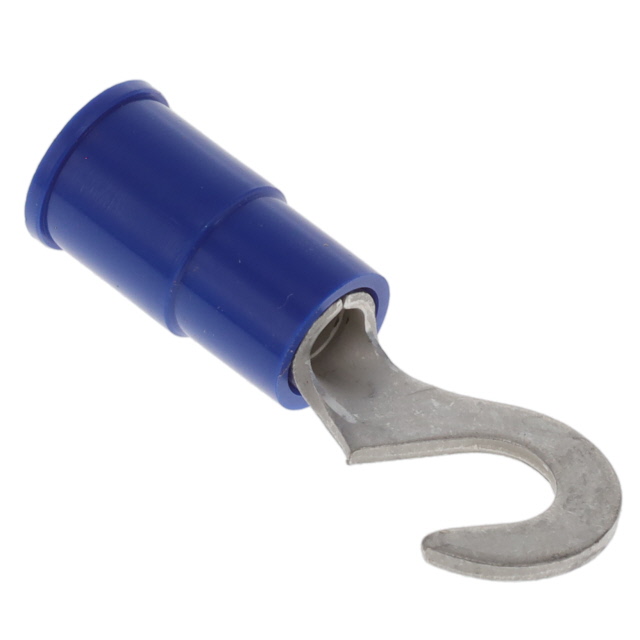

CONN RING HOOK 14-16AWG #8 CRIMP

Search across all available documentation for this part.

Obsolete

Molex

CONN RING HOOK 14-16AWG #8 CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	0191710009

Color	Blue
Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Insulated
Insulation Diameter [diameter]	0.175 in
Insulation Diameter [diameter]	4.45 mm
Length - Overall [x]	0.948 in
Length - Overall [x]	24.08 mm
Material - Insulation	Poly-Vinyl Chloride (PVC)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Hook
Termination	Crimp
Thickness	0.031 in
Thickness	0.79 mm
Width - Outer Edges [y]	8.89 mm
Width - Outer Edges [y]	0.35 in

Part	Length - Overall [x]	Length - Overall [x]	Termination	Contact Finish	Terminal Type	Insulation	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Mounting Type	Color	Stud/Tab Size	Material - Insulation	Thickness	Thickness	Contact Material	Stud/Tab Size
Molex 0191710012	0.948 in	24.08 mm	Crimp	Electro-Tin	Hook	Insulated	8.89 mm	0.35 in	0.175 in	4.45 mm	Free Hanging (In-Line)	Blue	10 Stud	Poly-Vinyl Chloride (PVC)	0.031 in	0.79 mm	Copper
Molex 0191710030	0.948 in	24.08 mm	Crimp	Electro-Tin	Hook	Insulated	8.89 mm	0.35 in	0.175 in	4.45 mm	Free Hanging (In-Line)	Blue	10 Stud	Poly-Vinyl Chloride (PVC)	0.031 in	0.79 mm	Copper
Molex 0191710009	0.948 in	24.08 mm	Crimp	Electro-Tin	Hook	Insulated	8.89 mm	0.35 in	0.175 in	4.45 mm	Free Hanging (In-Line)	Blue		Poly-Vinyl Chloride (PVC)	0.031 in	0.79 mm	Copper	8 Stud

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector 8 Stud Hook 14-16 AWG Crimp
