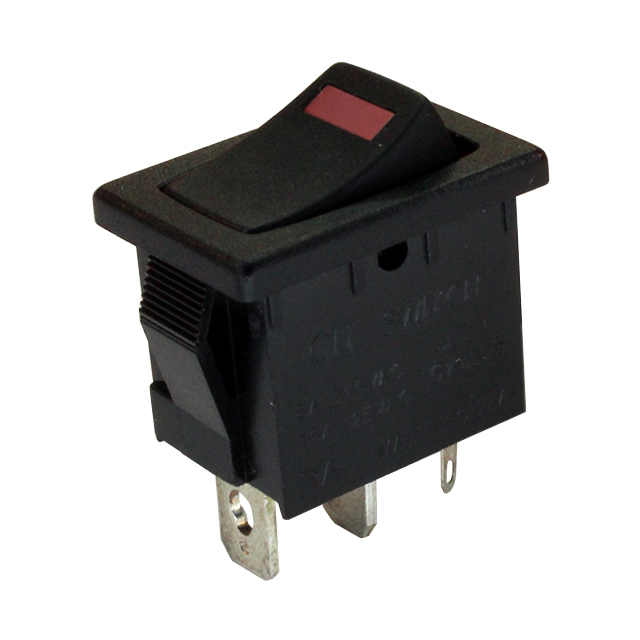

RA1122XCR

Active

CIT Relay and Switch

SWITCH ROCKER SPST 15A 125V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH ROCKER SPST 15A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	RA1122XCR

Actuator Marking	No Marking
Actuator Type	Concave (Curved) - Illuminated
Approval Agency	cULus
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	15 A
Electrical Life	10000 Cycles
Illumination Type, Color	Red, LED
Mounting Type	Snap-In, Right Angle, Panel Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Switch Function	On-Off
Termination Style	PC Pin
Voltage Rating - AC	125 V

Part	Approval Agency	Electrical Life	Current Rating (Amps)	Circuit	Switch Function	Color - Actuator/Cap	Actuator Type	Actuator Marking	Illumination Type, Color	Voltage Rating - AC	Termination Style	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style
CIT Relay and Switch RA1122XCR	cULus	10000 Cycles	15 A	SPST	On-Off	Black	Concave (Curved) - Illuminated	No Marking	LED Red	125 V	PC Pin	Panel Mount Right Angle Snap-In	-40 °C	105 ░C
CIT Relay and Switch RA1122XCB	cULus	10000 Cycles	15 A	SPST	On-Off	Black	Concave (Curved) - Illuminated	No Marking	Blue LED	125 V	Quick Connect Solder	Panel Mount Snap-In	-40 °C	105 ░C	0.187 in 4.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST 15A (AC) 125 V Panel Mount, Snap-In, Right Angle
