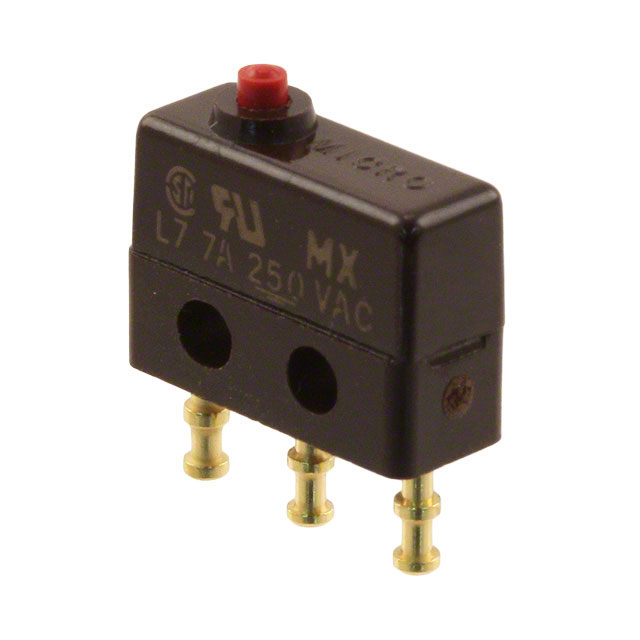

21SX39-T2
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 7A 115V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
21SX39-T2
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 7A 115V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 21SX39-T2 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating (Amps) | 7 A |
| Differential Travel | 0.13 mm |
| Differential Travel | 0.005 in |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 141 gf |
| Operating Position | 8.13 mm |
| Operating Position | 0.32 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -53 °C |
| Overtravel | 0.004 in |
| Overtravel | 0.1 mm |
| Pretravel | 0.02 in |
| Pretravel | 0.5 mm |
| Release Force | 28 gf |
| Switch Function | On-Mom |
| Termination Style | Solder Turret |
| Voltage Rating - AC | 115 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 200 | $ 11.12 | |
Description
General part information
21SX39 Series
Switch SPDT Chassis Mount
