PDSH04-5,08
ActiveTE Connectivity Raychem Cable Protection
CONN TERM BLK 8POS 5.08MM
Deep-Dive with AI
Search across all available documentation for this part.
PDSH04-5,08
ActiveTE Connectivity Raychem Cable Protection
CONN TERM BLK 8POS 5.08MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PDSH04-5,08 |
|---|---|
| Color | Green |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.161 in |
| Contact Tail Length | 4.1 mm |
| Current - IEC | 12 A |
| Current - UL | 12 A |
| Features | Interlocking (Side) |
| Header Orientation | 90°, Right Angle |
| Housing Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 2 |
| Number of Positions | 8 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Positions Per Level | 4 |
| Termination Style | Solder |
| Type | Header, Male Pins, Shrouded (2 Side) |
| Voltage - IEC | 250 V |
| Voltage - UL | 300 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.36 | |
| 10 | $ 2.56 | |||
| 25 | $ 2.40 | |||
| 50 | $ 2.13 | |||
| 100 | $ 2.08 | |||
| 300 | $ 2.04 | |||
Description
General part information
PDSH04 Series

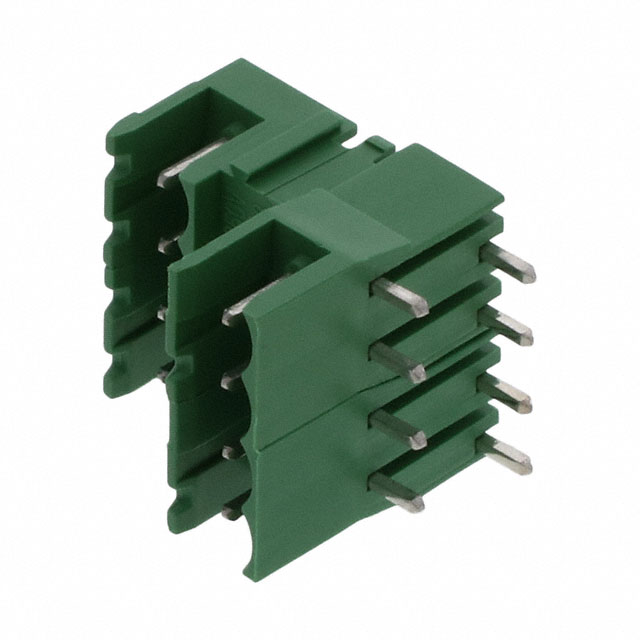

8 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
