XS3A1T3157GMX

Active

Freescale Semiconductor - NXP

IC SWITCH SPDT X 1 900MOHM 6XSON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XS3A1T3157GMX

Active

Freescale Semiconductor - NXP

IC SWITCH SPDT X 1 900MOHM 6XSON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XS3A1T3157GMX

-3db Bandwidth	40 MHz
Channel Capacitance (CS(off), CD(off)) [custom]	35 pF
Channel Capacitance (CS(off), CD(off)) [custom]	35 pF
Channel-to-Channel Matching (ΔRon)	100 mOhm
Charge Injection	15 pC
Current - Leakage (IS(off)) (Max)	10 nA
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max) [Max]	900 mOhm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-XFDFN

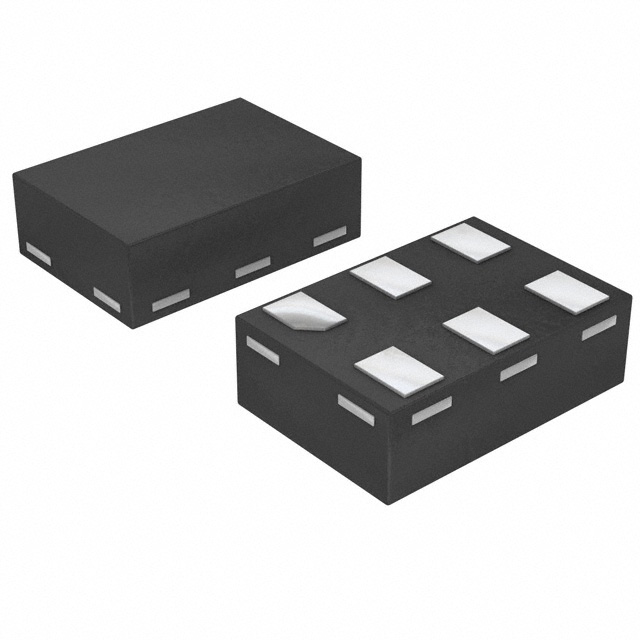

Supplier Device Package	6-XSON, SOT886 (1.45x1)
Switch Circuit	SPDT
Switch Time (Ton, Toff) (Max) [custom]	20 ns
Switch Time (Ton, Toff) (Max) [custom]	40 ns
Voltage - Supply, Single (V+) [Max]	4.3 V
Voltage - Supply, Single (V+) [Min]	1.4 V

XS3A1T3157GS Series

Low-ohmic single-pole double-throw analog switch

Part	On-State Resistance (Max) [Max]	Package / Case	Multiplexer/Demultiplexer Circuit	Charge Injection	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	-3db Bandwidth	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Switch Circuit	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Current - Leakage (IS(off)) (Max)	Number of Circuits	Channel-to-Channel Matching (ΔRon)	Supplier Device Package
Freescale Semiconductor - NXP XS3A1T3157GSH	900 mOhm	6-XFDFN	2:1	15 pC	1.4 V	4.3 V	20 ns	40 ns	40 MHz	Surface Mount	-40 °C	125 °C	SPDT	35 pF	35 pF	10 nA	1	100 mOhm	6-XSON SOT1202 (1x1)
Freescale Semiconductor - NXP XS3A1T3157GMX	900 mOhm	6-XFDFN	2:1	15 pC	1.4 V	4.3 V	20 ns	40 ns	40 MHz	Surface Mount	-40 °C	125 °C	SPDT	35 pF	35 pF	10 nA	1	100 mOhm	6-XSON SOT886 (1.45x1)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.29
		10	$ 0.24
		25	$ 0.22
		100	$ 0.16
		250	$ 0.15
		500	$ 0.12
		1000	$ 0.09
		2500	$ 0.09
	Digi-Reel®	1	$ 0.29
		10	$ 0.24
		25	$ 0.22
		100	$ 0.16
		250	$ 0.15
		500	$ 0.12
		1000	$ 0.09
		2500	$ 0.09
	Tape & Reel (TR)	5000	$ 0.09

Description

General part information

XS3A1T3157GS Series

The XS3A1T3157 is a low-ohmic single-pole double-throw analog switch suitable for use as an analog or digital 2:1 multiplexer/demultiplexer. It has a digital select input (S), two independent inputs/outputs (Y1 and Y2) and a common input/output (Z).
