094I,GY

Active

Serpac

BOX ABS GRAY 9.5"L X 6.34"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 9.5"L X 6.34"W

Technical Specifications

Parameters and characteristics for this part

Specification	094I,GY

Area (L x W)	60.2 in²
Area (L x W)	388 cm²
Color	Gray
Container Type	Box
Features	PCB Supports
Height [z]	60.96 mm
Height [z]	2.4 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension	161.04 mm, 241.3 mm
Size / Dimension [x]	9.5 "
Size / Dimension [y]	6.34 "
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.69 lb
Weight	312.98 g

Part	Area (L x W)	Area (L x W)	Design	Material	Material Flammability Rating	Weight	Weight	Container Type	Thickness	Thickness	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Features	Color	Ratings	Height [z]	Height [z]
Serpac 094I,AL	60.2 in²	388 cm²	Cover Included Hand Held	Plastic ABS	UL94 HB	0.69 lb	312.98 g	Box	2.54 mm	0.1 in	9.5 "	6.34 "	161.04 mm 241.3 mm	PCB Supports	Almond	IP40 NEMA 1	60.96 mm	2.4 in
Serpac 094I,BK	60.2 in²	388 cm²		Plastic ABS	UL94 HB	0.69 lb	312.98 g	Box	2.54 mm	0.1 in	9.5 "	6.34 "	161.04 mm 241.3 mm	PCB Supports	Black	IP40 NEMA 1	60.96 mm	2.4 in
Serpac 094I,GY	60.2 in²	388 cm²		Plastic ABS	UL94 HB	0.69 lb	312.98 g	Box	2.54 mm	0.1 in	9.5 "	6.34 "	161.04 mm 241.3 mm	PCB Supports	Gray	IP40 NEMA 1	60.96 mm	2.4 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.37

General part information

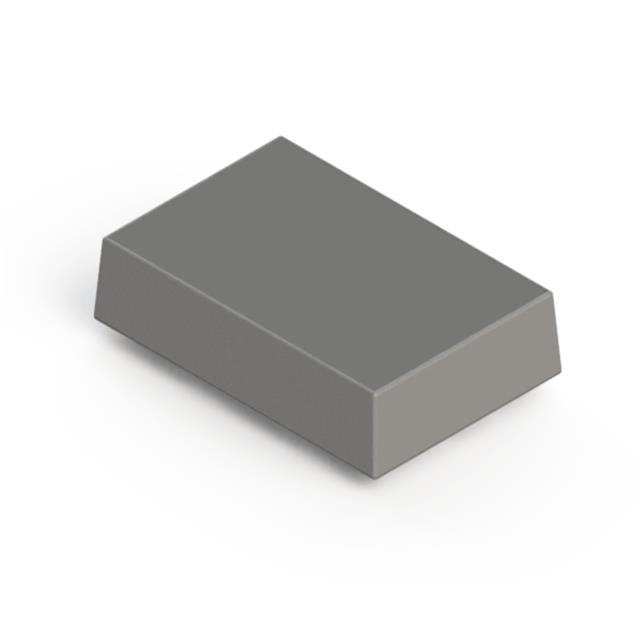

Box Plastic, ABS Gray 9.500" L x 6.340" W (241.30mm x 161.04mm) X 2.400" (60.96mm)

Technical documentation and resources

No documents available
