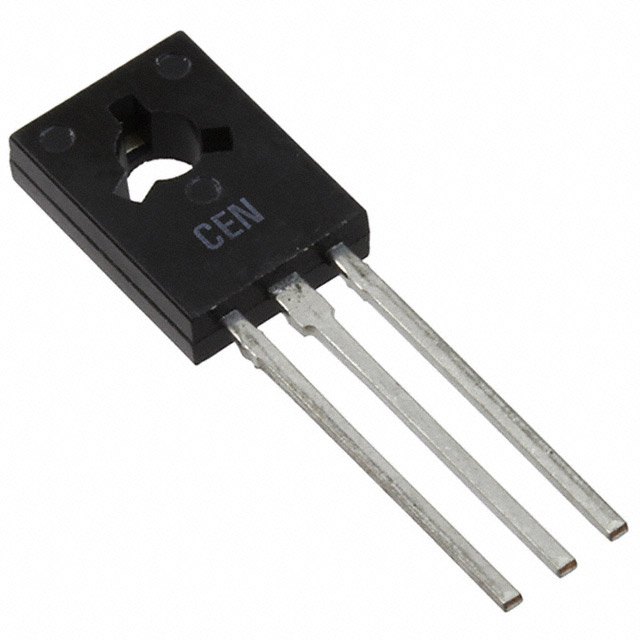

MJE180 PBFREE

Obsolete

Central Semiconductor Corp

TRANS NPN 40V 3A TO126

Search across all available documentation for this part.

Obsolete

Central Semiconductor Corp

TRANS NPN 40V 3A TO126

Technical Specifications

Parameters and characteristics for this part

Specification	MJE180 PBFREE

Current - Collector (Ic) (Max) [Max]	3 A
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	50 hFE
Frequency - Transition	50 MHz
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	TO-225AA, TO-126-3
Power - Max [Max]	1.5 W
Supplier Device Package	TO-126
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	1.7 V
Voltage - Collector Emitter Breakdown (Max) [Max]	40 V

Part	Transistor Type	Supplier Device Package	Vce Saturation (Max) @ Ib, Ic	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Collector Cutoff (Max) [Max]	Package / Case	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Frequency - Transition	Mounting Type
Central Semiconductor Corp MJE180 PBFREE	NPN	TO-126	1.7 V	40 V	3 A	1.5 W	150 °C	-65 °C	100 nA	TO-126-3 TO-225AA	50 hFE	50 MHz	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor NPN 40 V 3 A 50MHz 1.5 W Through Hole TO-126
