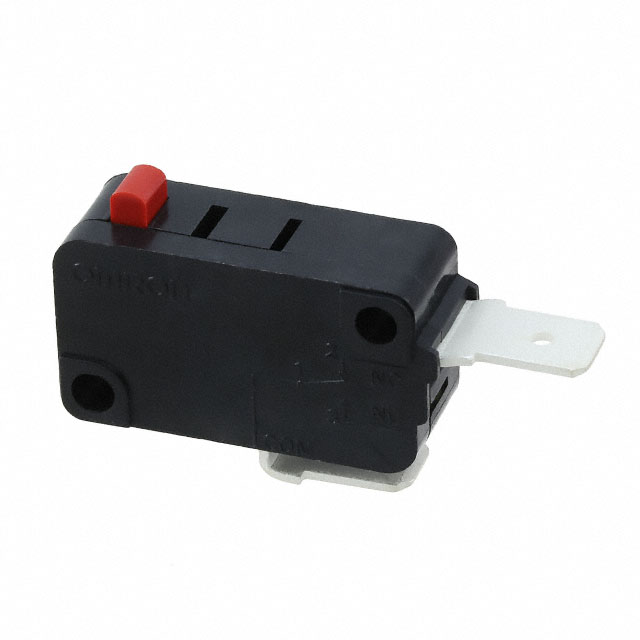

V-21-2C6
ObsoleteOmron Electronics Inc-EMC Div
SWITCH SNAP ACT SPST-NC 21A 250V
Deep-Dive with AI
Search across all available documentation for this part.
V-21-2C6
ObsoleteOmron Electronics Inc-EMC Div
SWITCH SNAP ACT SPST-NC 21A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | V-21-2C6 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPST-NC |
| Current Rating (Amps) | 600 mA, 21 A |
| Differential Travel | 0.016 " |
| Differential Travel | 0.4 mm |
| Electrical Life | 100000 Cycles |
| Ingress Protection | IP40 |
| Mechanical Life | 50000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 400 gf |
| Operating Position | 0.579 in |
| Operating Position | 14.7 mm |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 0.04 in |
| Overtravel | 1 mm |
| Pretravel | 0.047 in |
| Pretravel | 1.2 mm |
| Release Force | 80 gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.12 | |
| 10 | $ 4.52 | |||
| 25 | $ 4.22 | |||
Description
General part information
V-21 Series
Switch SPST-NC Chassis Mount
