19300101441YYC

Unknown

HARTING Technology Group

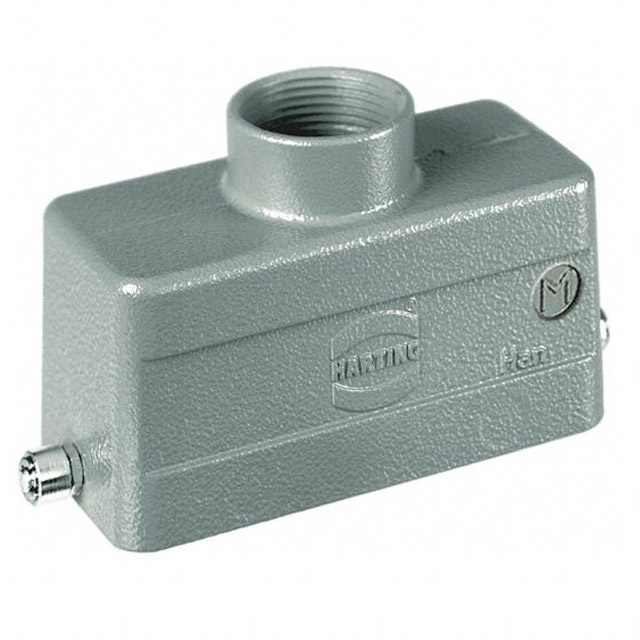

CONN HOOD TOP ENTRY SZ10B M25

Search across all available documentation for this part.

Unknown

HARTING Technology Group

CONN HOOD TOP ENTRY SZ10B M25

Technical Specifications

Parameters and characteristics for this part

Specification	19300101441YYC

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Size / Dimension [x]	2.858 "
Size / Dimension [x]	72.6 mm
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	2.303 "
Size / Dimension [z]	58.5 mm
Style	Top Entry
Thread Size	M25

Part	Size	Housing Color	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Housing Finish	Ingress Protection	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Style	Lock Location	Housing Material
HARTING Technology Group 19300101441YYC	10B	Gray	1.693 in	43 mm	2.858 "	2.303 "	58.5 mm	72.6 mm	Powder Coated	IP65 - Dust Tight Water Resistant	M25	125 °C	-40 °C	Hood	Top Entry	Locking Clip (1) on Base Bottom	Aluminum Die Cast

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 38.08

General part information

Hood Connector Top Entry M25 10B IP65 - Dust Tight, Water Resistant
