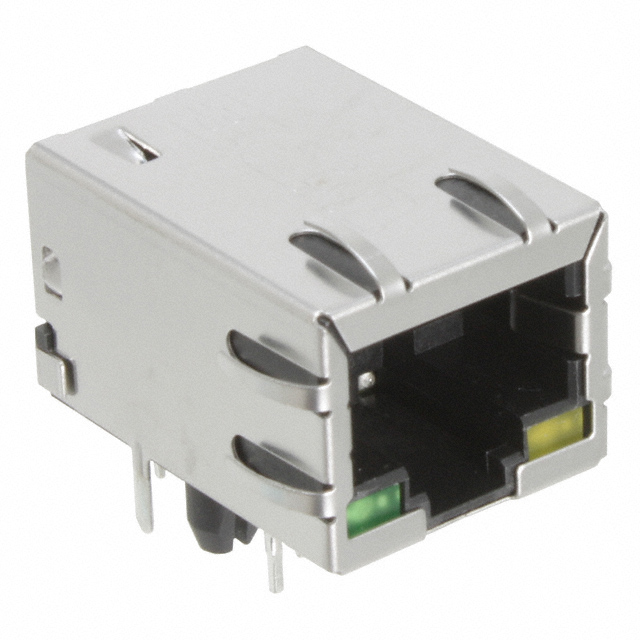

RB1-125BAG1A
ActiveWIZnet
CONN JACK 1PORT 100 BASE-T PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RB1-125BAG1A
ActiveWIZnet
CONN JACK 1PORT 100 BASE-T PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RB1-125BAG1A |
|---|---|
| Applications | 10/100 Base-T, AutoMDIX |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Phosphor Bronze |
| Height Above Board | 0.525 in |
| Height Above Board | 13.33 mm |
| Housing Material | Thermoplastic |
| LED Color | Yellow, Green |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Orientation | 90 ° |
| Shield Material | Stainless Steel |
| Shielding | Shielded, EMI Finger |
| Tab Direction | Down |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.42 | |
| 10 | $ 3.10 | |||
| 25 | $ 2.94 | |||
| 40 | $ 2.87 | |||
| 80 | $ 2.73 | |||
| 420 | $ 2.39 | |||
| 840 | $ 2.12 | |||
| 1260 | $ 2.07 | |||
Description
General part information
RB1-125 Series
1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
