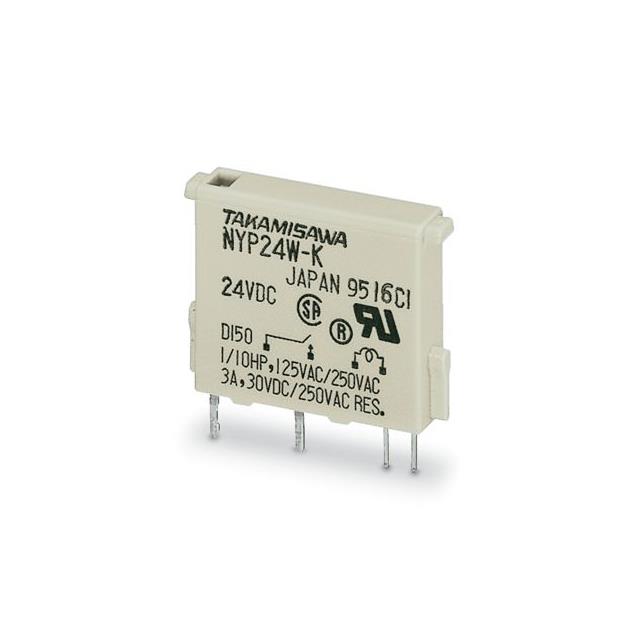

2961037
ActivePhoenix Contact
RELAY GEN PURPOSE SPST 3A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2961037
ActivePhoenix Contact
RELAY GEN PURPOSE SPST 3A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2961037 |
|---|---|
| Approval Agency | cULus, EAC, UR |
| Coil Current | 6.5 mA |
| Coil Resistance | 4.8 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 3 A |
| Load - Max Switching | 750 VA, 375 W |
| Mounting Type | Through Hole |
| Operate Time | 5 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 2 ms |
| Switching Voltage | 250 VAC, 125 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 8 | $ 21.03 | |
Description
General part information
29610 Series
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
