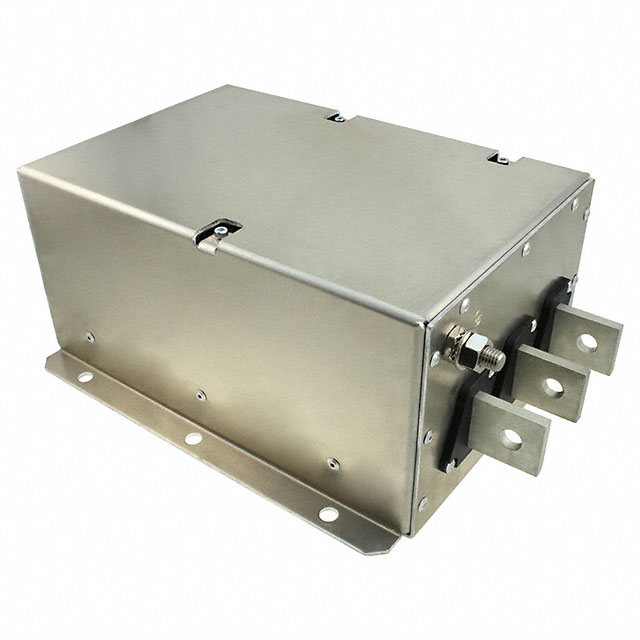

1000APH12P

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 690VAC 1KA CHASSIS

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 690VAC 1KA CHASSIS

Technical Specifications

Parameters and characteristics for this part

Specification	1000APH12P

Applications	General Purpose
Configuration	Three Stage
Current	1 kA
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Terminal Post
Voltage - Rated AC	690 V

Part	Mounting Type	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Configuration	Frequency - Operating [Max]	Frequency - Operating [Min]	Termination Style	Applications	Voltage - Rated AC	Filter Type	Current
TE Connectivity Raychem Cable Protection 1000APH12P	Chassis Mount	-10 °C	50 °C	Three Stage	60 Hz	50 Hz	Terminal Post	General Purpose	690 V	Three Phase (Delta)	1 kA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2153.56

General part information

Three Phase (Delta) EMC/EMI Line Filter 1 kA 690V 50/60Hz Three Stage Terminal Post
