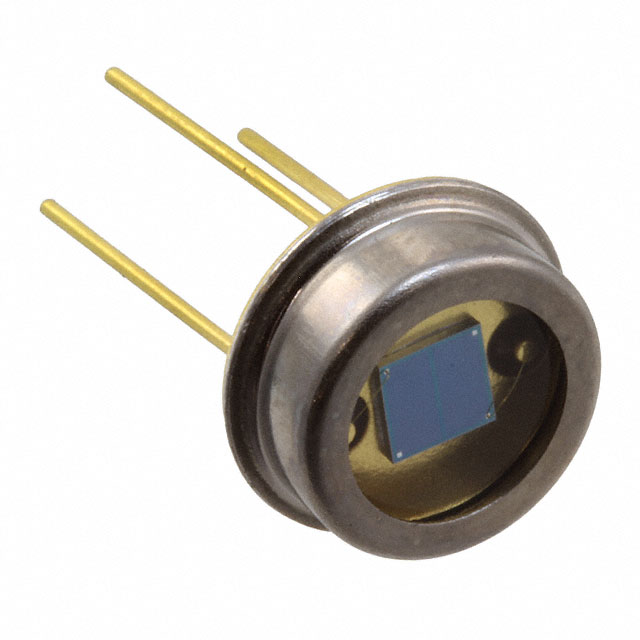

ODD-3W-2
ActiveOpto Diode Corp
SENSOR PHOTODIODE 950NM TO5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ODD-3W-2
ActiveOpto Diode Corp
SENSOR PHOTODIODE 950NM TO5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ODD-3W-2 |
|---|---|
| Active Area | 3 mm² |
| Color - Enhanced | Red |
| Current - Dark (Typ) | 900 pA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Response Time | 190 ns |
| Responsivity @ nm | 0.36 A/W |
| Spectral Range [Max] [custom] | 1100 nm |
| Spectral Range [Min] [custom] | 250 nm |
| Voltage - DC Reverse (Vr) (Max) [Max] | 75 V |
| Wavelength | 950 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 30.04 | |
| 50 | $ 23.52 | |||
| 100 | $ 20.55 | |||
| 450 | $ 18.85 | |||
Description
General part information
ODD-3W Series
Photodiode 950nm 190ns
