1058200

Active

SICK, Inc.

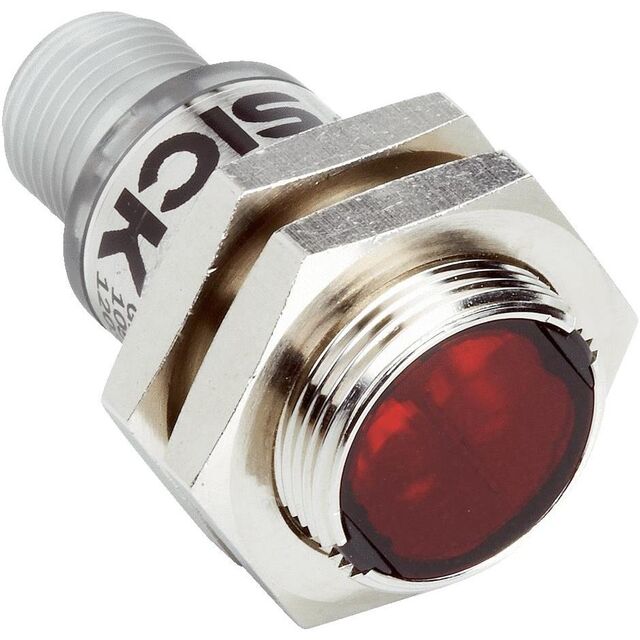

SENSOR PROXIMITY 550MM PNP

Search across all available documentation for this part.

Active

SICK, Inc.

SENSOR PROXIMITY 550MM PNP

Technical Specifications

Parameters and characteristics for this part

Part	Sensing Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Connection Method	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]	Response Time	Light Source	Ingress Protection	Output Configuration	Cable Length	Cable Length	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Max]
SICK, Inc. 1058200	Proximity	30 VDC	10 VDC	-25 °C	55 °C	Connector M12	21.654 in	0.197 in	5 mm	55 cm	1 ms	RED (650nm)	IP67	PNP
SICK, Inc. 1069584	Proximity	30 VDC	10 VDC	-25 °C	55 °C	Cable	4.528 "	0.118 "	3 mm	115 mm	1 ms	RED (650nm)	IP67	NPN	78.74 in	2 m
SICK, Inc. 1059488	Proximity	30 VDC	10 VDC	-25 °C	55 °C	Connector M12	21.654 in	0.197 in	5 mm	55 cm	1 ms	RED (650nm)	IP67	PNP
SICK, Inc. GRTE18S-N2317	Proximity	30 VDC	10 VDC	-25 °C	55 °C	Connector M12	4.528 "	0.118 "	3 mm	115 mm	1 ms	RED (650nm)	IP67	NPN
SICK, Inc. 1069558	Proximity	30 VDC	10 VDC	-25 °C	55 °C	Connector M12			0.197 in		1 ms	RED (650nm)	IP67	PNP			1m	5mm	39.37 in
SICK, Inc. 1069582	Proximity	30 VDC	10 VDC	-25 °C	55 °C	Connector M12	4.528 "	0.118 "	3 mm	115 mm	1 ms	RED (650nm)	IP67	PNP
SICK, Inc. 1059409	Proximity	30 VDC	10 VDC	-25 °C	55 °C	Connector M12	4.528 "	0.118 "	3 mm	115 mm	1 ms	RED (650nm)	IP67	NPN
SICK, Inc. GRTE18S-E236Z	Proximity	30 VDC	10 VDC	-25 °C	55 °C	Connector M12			0.197 in		1 ms	RED (650nm)	IP67	NPN			1m	5mm	39.37 in
SICK, Inc. 1069494	Proximity	30 VDC	10 VDC	-25 °C	55 °C	Cable			0.197 in		1 ms	RED (650nm)	IP67	NPN	78.74 in	2 m	1m	5mm	39.37 in
SICK, Inc. 1059438

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Proximity Optical Sensor 0.197" ~ 21.654" (5mm ~ 550mm) PNP
