300-73060

Obsolete

HELLERMANNTYTON

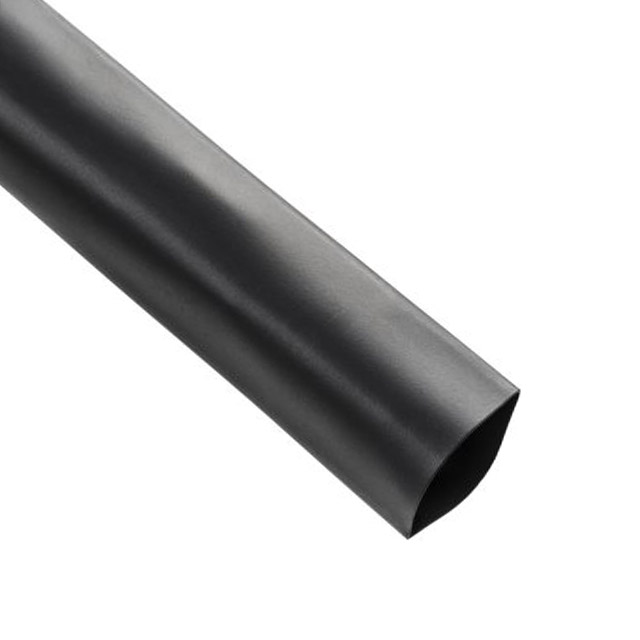

2:1 BLACK HEATSHRINK TUBING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Materials Guide for Bundling & Securing

300-73060

Obsolete

HELLERMANNTYTON

2:1 BLACK HEATSHRINK TUBING

Deep-Dive with AI

DocumentsDatasheet Materials Guide for Bundling & Securing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	300-73060

Color	Black
Features	Solvent Resistant, Fluid Resistant, Flame Retardant
Inner Diameter - Recovered	3.18 mm
Inner Diameter - Recovered [diameter]	0.125 in
Inner Diameter - Supplied [diameter]	0.25 in
Inner Diameter - Supplied [diameter]	6.35 mm
Length	984.3 ft
Length	300 m
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.56 mm
Recovered Wall Thickness	0.022 "
Shrink Temperature	100 °C
Shrinkage Ratio	2 to 1
Type	Tubing, Flexible

300-73 Series

Part	Shrinkage Ratio	Recovered Wall Thickness	Recovered Wall Thickness	Type	Features	Length	Length	Color	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrink Temperature	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Material	Inner Diameter - Supplied [diameter]	Length	Length [x]	Length [x]	Inner Diameter - Recovered
HELLERMANNTYTON 300-73602	2 to 1	0.018 in	0.46 mm	Tubing Flexible	Flame Retardant Fluid Resistant Solvent Resistant	1000 ft	304.8 m	Black	0.049 in	1.24 mm	100 °C	0.093 in	2.36 mm	-55 °C	125 °C	Polyolefin (PO) Irradiated
HELLERMANNTYTON 300-73090	2 to 1	0.031 "	0.79 mm	Tubing Flexible	Flame Retardant Fluid Resistant Solvent Resistant	196.8 ft	60 m	Black	0.375 in	9.53 mm	100 °C	19.1 mm		-55 °C	125 °C	Polyolefin (PO) Irradiated	0.752 in
HELLERMANNTYTON 300-73050	2 to 1	0.019 "	0.5 mm	Tubing Flexible	Flame Retardant Fluid Resistant Solvent Resistant		984.3 ft	Black	0.095 in	2.41 mm	100 °C	4.75 mm		-55 °C	125 °C	Polyolefin (PO) Irradiated	0.187 in	300 m
HELLERMANNTYTON 300-73610	2 to 1	0.04 in	1.02 mm	Tubing Flexible	Flame Retardant Fluid Resistant Solvent Resistant			Black	0.752 "	19.1 mm	100 °C	38.1 mm		-55 °C	125 °C	Polyolefin (PO) Irradiated	1.5 in		30.5 m	100 ft
HELLERMANNTYTON 300-73609	2 to 1	0.036 in	0.9 mm	Tubing Flexible	Flame Retardant Fluid Resistant Solvent Resistant			Black	0.5 in	12.7 mm	100 °C	25.4 mm		-55 °C	125 °C	Polyolefin (PO) Irradiated	1 in		61 m	200 ft
HELLERMANNTYTON 300-73070	2 to 1	0.022 "	0.56 mm	Tubing Flexible	Flame Retardant Fluid Resistant Solvent Resistant	328.1 ft	100 m	Black	0.187 in	4.75 mm	100 °C	9.5 mm		-55 °C	125 °C	Polyolefin (PO) Irradiated	0.374 in
HELLERMANNTYTON 300-73060	2 to 1	0.022 "	0.56 mm	Tubing Flexible	Flame Retardant Fluid Resistant Solvent Resistant		984.3 ft	Black	0.125 in		100 °C	6.35 mm		-55 °C	125 °C	Polyolefin (PO) Irradiated	0.25 in	300 m			3.18 mm
HELLERMANNTYTON 300-73040	2 to 1	0.018 in	0.46 mm	Tubing Flexible	Flame Retardant Fluid Resistant Solvent Resistant		984.3 ft	Black	0.062 in	1.57 mm	100 °C	3.18 mm		-55 °C	125 °C	Polyolefin (PO) Irradiated	0.125 "	300 m
HELLERMANNTYTON 300-73608	2 to 1	0.031 "	0.79 mm	Tubing Flexible	Flame Retardant Fluid Resistant Solvent Resistant			Black	0.375 in	9.53 mm	100 °C	19.1 mm		-55 °C	125 °C	Polyolefin (PO) Irradiated	0.752 in		61 m	200 ft
