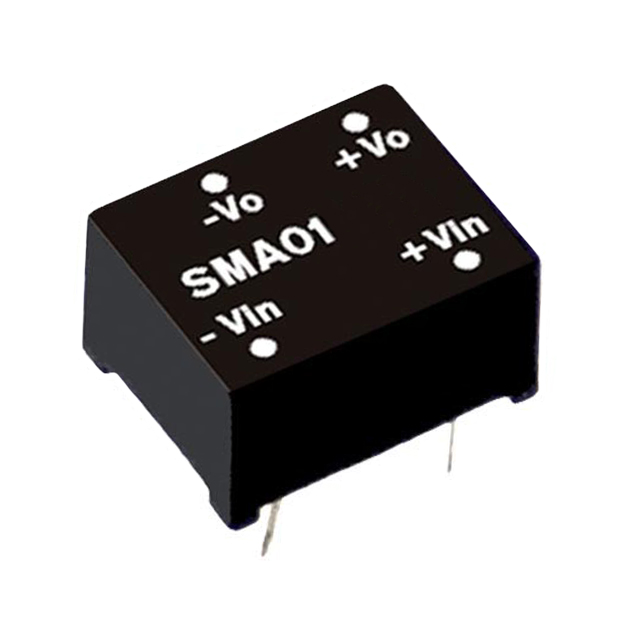

SMA01L-05

Active

MEAN WELL USA Inc.

DC DC CONVERTER 5V 1W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

DC DC CONVERTER 5V 1W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Isolation	Mounting Type	Current - Output (Max) [Max]	Type	Voltage - Input (Max) [Max]	Voltage - Output 1	Number of Outputs	Efficiency	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Package / Case	Applications
MEAN WELL USA Inc. SMA01L-12	1.5 kV	Through Hole	84 mA	Isolated Module	5.5 V	12 V	1	78 %	4.5 V	-40 °C	90 °C	OCP SCP	12.7 mm	0.4 in	0.5 in	7.1 mm	0.28 "	10.2 mm	7-DIP Module	4 Lead	ITE (Commercial)
MEAN WELL USA Inc. SMA01L-05	1.5 kV	Through Hole	200 mA	Isolated Module	5.5 V	5 V	1	77 %	4.5 V	-40 °C	90 °C	OCP SCP	12.7 mm	0.4 in	0.5 in	7.1 mm	0.28 "	10.2 mm	7-DIP Module	4 Lead	ITE (Commercial)
MEAN WELL USA Inc. SMA01L-09	1.5 kV	Through Hole	110 mA	Isolated Module	5.5 V	9 V	1	77 %	4.5 V	-40 °C	90 °C	OCP SCP	12.7 mm	0.4 in	0.5 in	7.1 mm	0.28 "	10.2 mm	7-DIP Module	4 Lead	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
