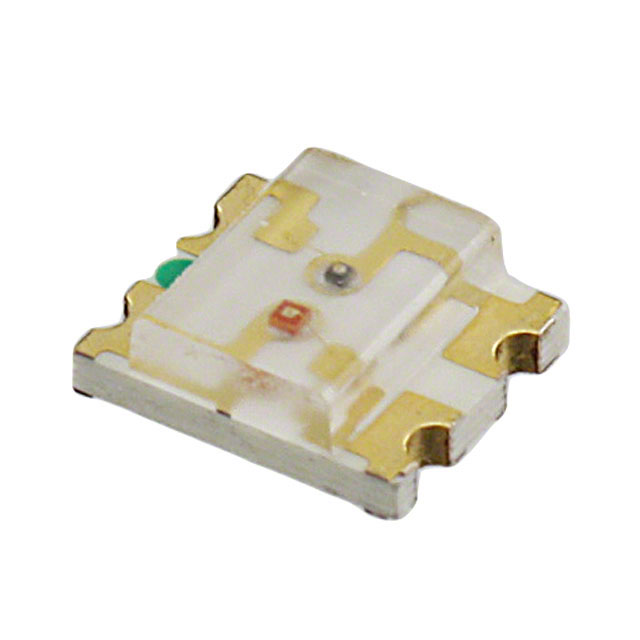

SM1210BC-SR/HG

Active

Bivar Inc.

LED GREEN/RED CLEAR 1210 SMD

Search across all available documentation for this part.

Active

Bivar Inc.

LED GREEN/RED CLEAR 1210 SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SM1210BC-SR/HG

Color	Red, Green
Configuration	Independent
Current - Test	20 mA, 20 mA
Height (Max) [Max] [z]	1.1 mm
Lens Color	Colorless
Lens Size [x]	2.7 mm
Lens Size [y]	2 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating	10 mcd, 28 mcd
Mounting Type	Surface Mount
Package / Case	1210
Package / Case	3225 Metric
Supplier Device Package	1210
Viewing Angle	130 °
Voltage - Forward (Vf) (Typ) [custom]	1.9 V
Voltage - Forward (Vf) (Typ) [custom]	2 V
Wavelength - Dominant	640 nm, 565 nm
Wavelength - Peak [custom]	660 nm
Wavelength - Peak [custom]	563 nm

Part	Package / Case	Package / Case	Millicandela Rating	Supplier Device Package	Configuration	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Dominant	Color	Lens Color	Lens Transparency	Mounting Type	Lens Size [y]	Lens Size [x]	Viewing Angle	Lens Style	Voltage - Forward (Vf) (Typ)	Height (Max) [Max] [z]	Current - Test [custom]	Current - Test [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Current - Test	Wavelength - Peak [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]
Bivar Inc. SM1210BC-UR/UB	1210	3225 Metric	8.2 mcd 24 mcd	1210	Independent	630 nm	468 nm	470 nm 625 nm	Blue Red	Colorless	Clear	Surface Mount	2 mm	2.7 mm	130 °	Rectangle with Flat Top	1.9 V 2.9 V	1.1 mm	20 mA	20 mA
Bivar Inc. SM1210BC	1210	3225 Metric	15 mcd 15 mcd	1210	Independent	660 nm			Green Red	Colorless	Clear	Surface Mount	2 mm	2.7 mm	130 °	Rectangle with Flat Top	1.85 V 2.3 V	1.1 mm			570 nm	643 nm	20 mA 20 mA	568 nm
Bivar Inc. SM1210BC-SR/HG	1210	3225 Metric	10 mcd 28 mcd	1210	Independent	660 nm		565 nm 640 nm	Green Red	Colorless	Clear	Surface Mount	2 mm	2.7 mm	130 °	Rectangle with Flat Top		1.1 mm					20 mA 20 mA	563 nm	1.9 V	2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green, Red 565nm Green, 640nm Red LED Indication - Discrete 2V Green, 1.9V Red 1210 (3225 Metric)
