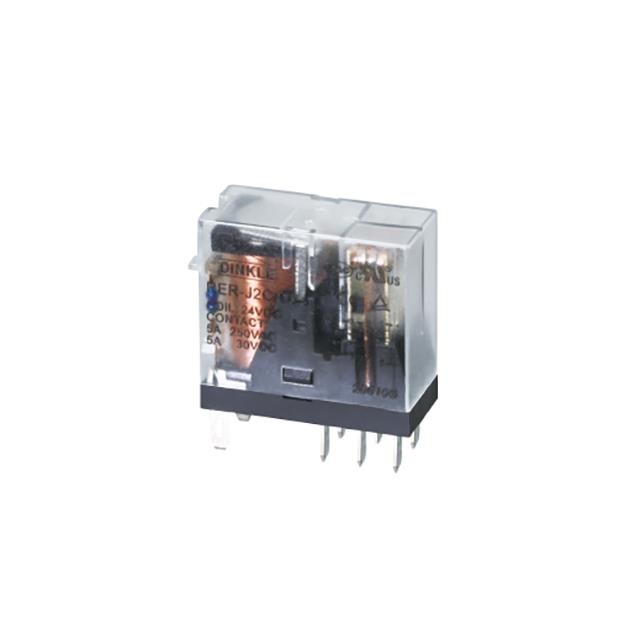

RER-J2C-D24
ActiveDinkle Corporation, USA
RELAY GEN PURPOSE SPDT 5A 24V
Deep-Dive with AI
Search across all available documentation for this part.
RER-J2C-D24
ActiveDinkle Corporation, USA
RELAY GEN PURPOSE SPDT 5A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RER-J2C-D24 |
|---|---|
| Coil Current | 21.8 mA |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 5 A |
| Features | Lighted Indicator |
| Mounting Type | Socketable |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage [Max] | 30 VDC, 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.26 | |
| 10 | $ 15.95 | |||
| 50 | $ 13.82 | |||
| 100 | $ 12.76 | |||
| 200 | $ 11.69 | |||
| 500 | $ 10.63 | |||
| 1000 | $ 9.57 | |||
Description
General part information
RER-J2 Series
General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
Documents
Technical documentation and resources
No documents available
