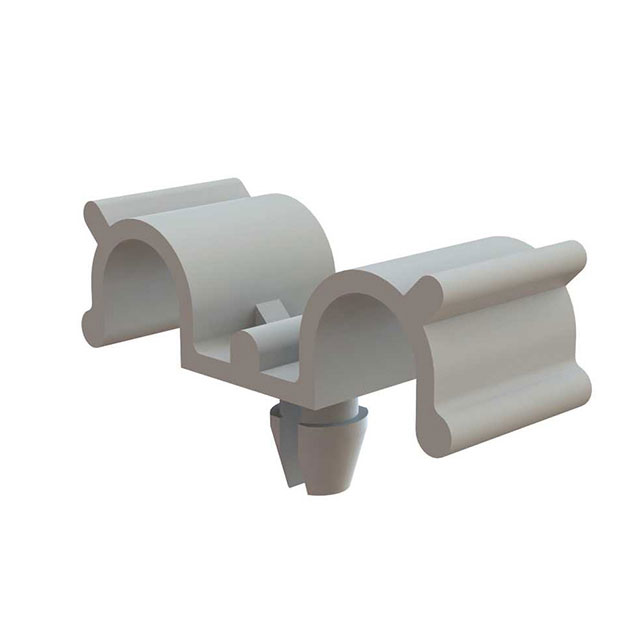

DHURC-3-01

Active

Essentra Access Solutions

CBL CLIP U-TYPE NATURAL PUSH IN

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLIP U-TYPE NATURAL PUSH IN

Technical Specifications

Parameters and characteristics for this part

Specification	DHURC-3-01

Bundle Center to Mounting Center	12.19 mm
Bundle Center to Mounting Center	0.48 in
Color	Natural
Height [z]	6.1 mm
Height [z]	0.24 in
Length	0.79 "
Length	20.07 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Push In
Opening Size [custom]	0.187 in
Opening Size [custom]	4.75 mm
Panel Hole Size [diameter]	3.18 mm
Panel Hole Size [diameter]	0.125 in
Panel Thickness [custom]	0.062 in
Panel Thickness [custom]	1.57 mm
Type Attributes	Dual, Half
Width	7.62 mm
Width [x]	0.3 "

Part	Length	Length	Opening Size [z]	Opening Size	Bundle Center to Mounting Center [x]	Bundle Center to Mounting Center [x]	Height [z]	Height [z]	Mounting Type	Type Attributes	Screw Size	Material	Material Flammability Rating	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Color	Width [x]	Width	Features	Opening Size [diameter]	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Panel Thickness [custom]	Panel Thickness [custom]	Opening Size [custom]	Opening Size [custom]
Essentra Access Solutions DHURCS-2-01	19.05 mm	0.75 in	0.125 in	3.18 mm	12.45 mm	0.49 in	4.32 mm	0.17 in	Fastener	Dual Half	#4 (M3) SR-30XX Series Rivet	Polyamide (PA66) Nylon 6/6	UL94 V-2	3.18 mm	0.125 in	Natural	0.3 "	7.62 mm
Essentra Access Solutions DHURCS-2-19	19.05 mm	0.75 in	0.125 in	3.18 mm	12.45 mm	0.49 in	4.32 mm	0.17 in	Fastener	Dual Half	#4 (M3) SR-30XX Series Rivet	Polyamide (PA) Nylon	UL94 V-2	3.18 mm	0.125 in	Natural	0.3 "	7.62 mm	Flame Retardant
Essentra Access Solutions DHURCS-4-01BK	25.91 mm	1.02 in		6.35 mm	16.26 mm	0.64 in			Fastener	Dual Half	#4 (M3) SR-30XX Series Rivet	Polyamide (PA66) Nylon 6/6	UL94 V-2	3.18 mm	0.125 in	Black	0.3 "	7.62 mm		0.25 in
Essentra Access Solutions DHURC-4-01	23.88 mm	0.94 in		6.35 mm					Push In	Dual Half		Polyamide (PA66) Nylon 6/6	UL94 V-2	3.18 mm	0.125 in	Natural	0.3 "	7.62 mm		0.25 in	0.55 in	13.97 mm	0.062 in	1.57 mm
Essentra Access Solutions DHURC-3-01	20.07 mm	0.79 "					6.1 mm	0.24 in	Push In	Dual Half		Polyamide (PA66) Nylon 6/6	UL94 V-2	3.18 mm	0.125 in	Natural	0.3 "	7.62 mm			0.48 in	12.19 mm	0.062 in	1.57 mm	0.187 in	4.75 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, U-Type Natural Push In 0.187" (4.75mm)
