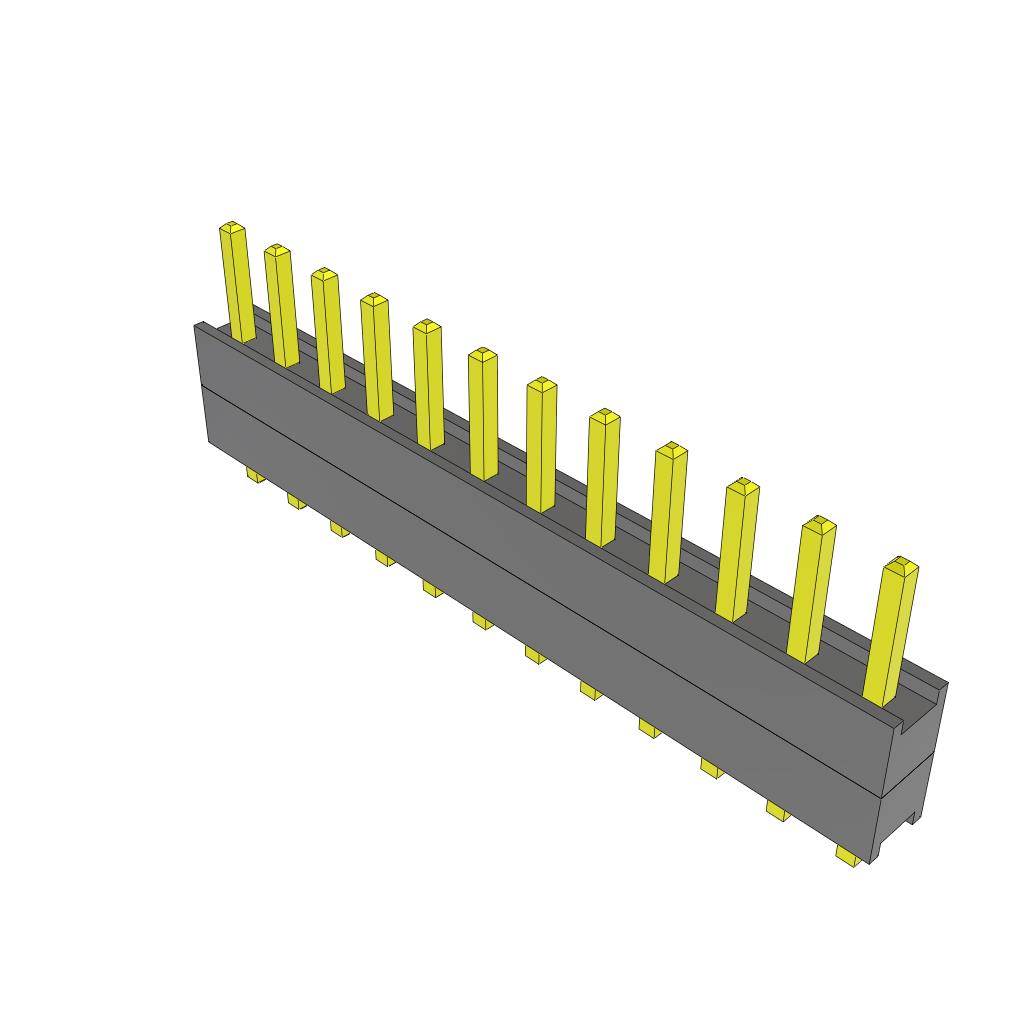

ZW-12-07-T-S-200-070

Active

Samtec Inc.

CONN BRD STACK .100" 12POS

Search across all available documentation for this part.

Active

Samtec Inc.

CONN BRD STACK .100" 12POS

Technical Specifications

Parameters and characteristics for this part

Part	Length - Stack Height [x]	Length - Stack Height [x]	Pitch [x]	Pitch [x]	Contact Finish - Post (Mating)	Color	Termination	Length - Overall Pin [x]	Length - Overall Pin [x]	Mounting Type	Length - Tail [custom]	Length - Tail [custom]	Number of Rows	Number of Positions	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Tail [x]	Length - Tail [x]	Length - Tail	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Tail	Row Spacing [x]	Row Spacing
Samtec Inc. ZW-12-07-T-S-250-125	0.25 in	6.35 mm	2.54 mm	0.1 in	Tin	Black	Solder	10.922 mm	0.43 in	Through Hole	3.18 mm	0.125 in	1	12	1.397 mm	0.055 in
Samtec Inc. ZW-12-07-T-S-235-100	0.235 in	5.969 mm	2.54 mm	0.1 in	Tin	Black	Solder	10.922 mm	0.43 in	Through Hole			1	12	2.413 mm	0.095 in	0.1 "	2.54 mm
Samtec Inc. ZW-12-07-T-S-200-071			2.54 mm	0.1 in	Tin	Black	Solder	10.922 mm	0.43 in	Through Hole			1	12	4.039 mm	0.159 in	0.071 in	1.803 mm
Samtec Inc. ZW-12-07-G-S-200-055			2.54 mm	0.1 in	Gold	Black	Solder	10.922 mm	0.43 in	Through Hole			1	12	4.445 mm	0.175 in	0.055 "		1.4 mm	0.25 Ám	10 Áin
Samtec Inc. ZW-12-07-T-S-200-070			2.54 mm	0.1 in	Tin	Black	Solder	10.922 mm	0.43 in	Through Hole			1	12	4.064 mm	0.16 in			0.07 in			1.778 mm
Samtec Inc. ZW-12-07-S-D-230-125			2.54 mm	0.1 in	Gold	Black	Solder	10.922 mm	0.43 in	Through Hole	3.18 mm	0.125 in	2	24	1.905 mm	0.075 in				0.76 µm	30 µin		0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.17

General part information

12 Position Header Spacer Connector 0.100" (2.54mm) Tin Through Hole

Technical documentation and resources
