SX8650IWLTRT
ObsoleteSemtech Corporation
IC SCREEN CNTRL 12BIT 12DFN
Deep-Dive with AI
Search across all available documentation for this part.
SX8650IWLTRT
ObsoleteSemtech Corporation
IC SCREEN CNTRL 12BIT 12DFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SX8650IWLTRT |
|---|---|
| Interface | I2C |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

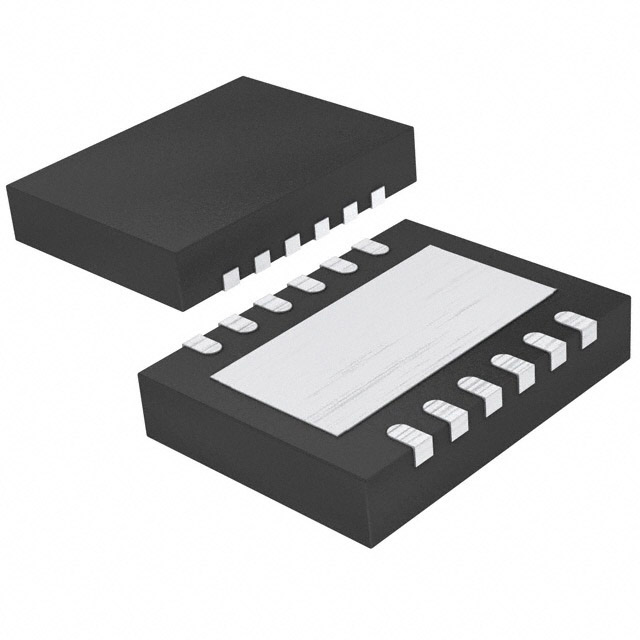

| Package / Case | 12-WFDFN Exposed Pad |
| Resolution (Bits) | 12 b |
| Supplier Device Package | 12-DFN (3x3) |
| Touchscreen | 4 Wire Resistive |
| Voltage - Supply [Max] | 3.7 V |
| Voltage - Supply [Min] | 1.65 V |
| Voltage Reference | Internal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SX8650 Series
Touchscreen Controller 4 Wire Resistive 12 b I2C Interface 12-DFN (3x3)
Documents
Technical documentation and resources
No documents available
