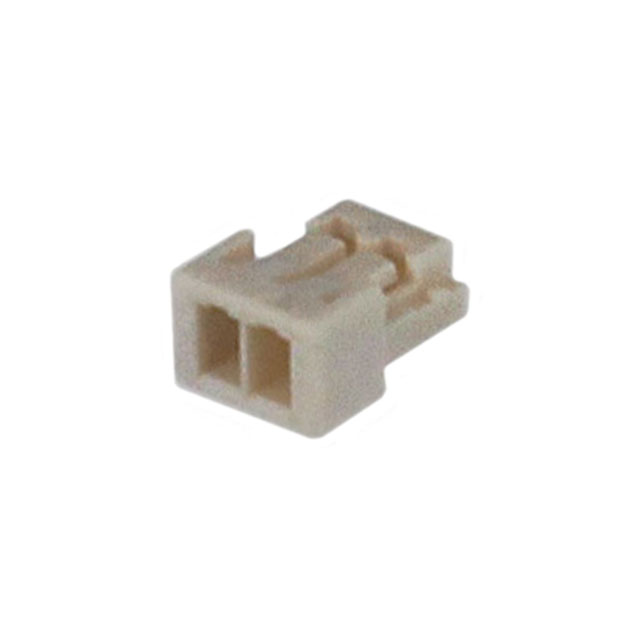

SUHR-02V-S
ActiveJST Sales America Inc.
CONN RCPT HSG 2POS 0.80MM
Deep-Dive with AI
Search across all available documentation for this part.
SUHR-02V-S
ActiveJST Sales America Inc.
CONN RCPT HSG 2POS 0.80MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SUHR-02V-S |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Friction Lock |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.30 | |
| 10 | $ 0.23 | |||
| 25 | $ 0.21 | |||
| 50 | $ 0.19 | |||
| 100 | $ 0.18 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.14 | |||
| 2500 | $ 0.12 | |||
Description
General part information
SUHR-02V Series
2 Rectangular Connectors - Housings Receptacle Natural 0.031" (0.80mm)
Documents
Technical documentation and resources
